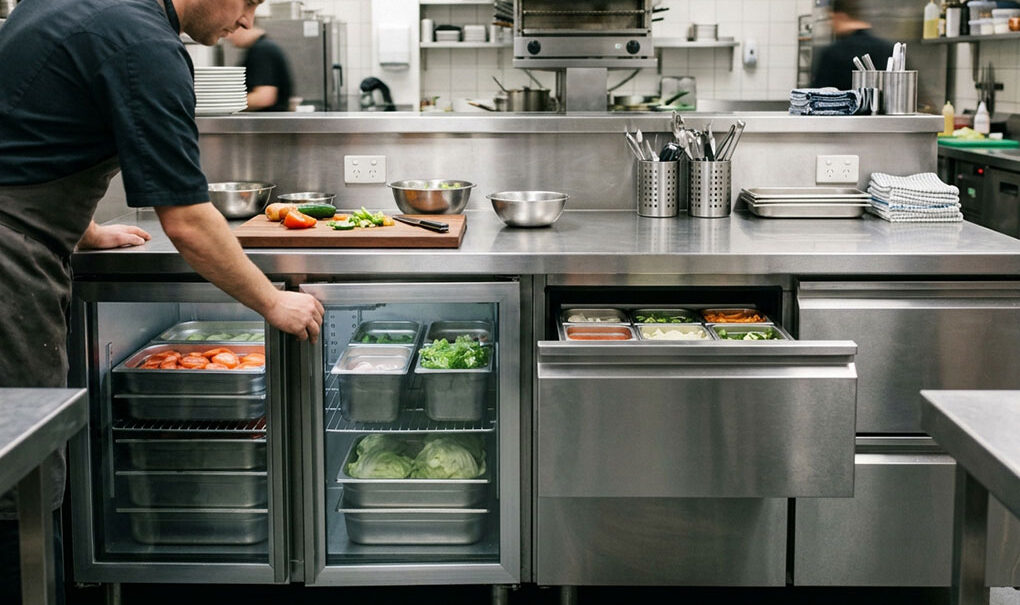

Commercial Under Bench Fridges: Configurations, Sizing and Installation
- What it is: An under bench fridge fits beneath a standard 900mm bench height, combining refrigeration with a usable work surface above — the most space-efficient cold storage option in a commercial kitchen.
- Door vs drawer: Hinged or sliding doors for general storage; drawer configuration for under cooking lines where door swing would obstruct workflow.
- Single vs double: Single door for 100–200L; double door for 200–400L — size to your peak prep station stock, not your average load.
- Condenser position: Top-mount stays cleaner in busy kitchens; bottom-mount is easier to access for servicing.
- Compliance: Must hold 5°C or below under real working conditions — not just when empty. Confirm ambient temperature rating for your kitchen environment.
- Top brands: Skope, Turbo Air and Hoshizaki for premium reliability; Bromic, Skipio and Polar for strong mid-range value.
An under bench fridge is the most space-efficient cold storage solution in a commercial kitchen. It fits beneath a standard stainless steel bench, keeps refrigerated ingredients within arm’s reach at the prep station, and puts the bench surface to work simultaneously. In a kitchen where every square metre counts, it’s one of the most practical investments you can make.
Getting it right — the correct configuration, capacity, door type and cooling system for your layout — means cold product is always accessible where and when it’s needed. Getting it wrong means a unit that doesn’t fit the workflow, runs short during service or struggles to hold temperature in your kitchen’s ambient conditions.
This under bench fridge guide covers configurations, sizing, bench integration, compliance and the brands Snowmaster stocks — everything you need to make a confident purchase decision.
Under Bench Fridge Configurations
Single Door Under Bench Fridge
The standard configuration. One hinged or sliding door, 100–200L capacity, fits under a standard 900mm bench. Suited to most prep stations, café kitchens and small restaurant applications where a single cold storage position is needed. Self-closing door mechanisms are standard on commercial-grade models. Available in solid and glass door configurations.
Double Door Under Bench Fridge
Two independent door sections in a wider cabinet, typically 200–400L. Each door section provides access to half the cabinet — reducing temperature loss during high-access periods by only exposing one section at a time. Suited to busier prep stations, larger café kitchens and any position where a single door unit doesn’t provide enough storage for peak service.
Three Door Under Bench Fridge
Maximum underbench capacity in a single run. Suited to high-volume kitchen prep areas, hotel kitchens and any operation running a long bench line where multiple cold storage positions are needed. Capacity typically 400L+. Each door section operates independently for minimal temperature loss during service.
Drawer Fridge
Pull-out drawer access rather than swing or sliding doors — the right choice for positioning under char grills, cooktops and other cooking equipment where door swing would obstruct workflow. Staff can access refrigerated ingredients without stepping back from the cooking position. See Snowmaster’s full range of commercial drawer fridges.
Pizza Prep Fridge
A counter-height under bench fridge with a refrigerated prep surface on top for toppings and ingredients. Keeps everything cold and accessible during service without moving between the fridge and the bench. Also suited to sandwich and salad bar prep. See Snowmaster’s full range of pizza prep fridges.
Bar Fridge
Glass door under bench fridge designed for front-of-house drink display and service. Keeps beverages visible and accessible without a back-of-house trip. The standard choice for bars, cafés and any venue serving bottled drinks across the counter. See Snowmaster’s full range of commercial bar fridges.
Door vs Drawer Configuration
Door Configuration
- Hinged or sliding door access to the full cabinet interior
- Hinged doors require clearance in front of the unit to open fully
- Sliding doors eliminate swing clearance — better for tight spaces
- Adjustable shelving accommodates varying container heights
- Lower purchase price than drawer equivalent at the same capacity
- Best for: General prep station cold storage, ingredient fridges, any position with adequate door clearance
Drawer Configuration
- Pull-out drawers rather than swing or slide doors
- No door swing required — works directly under cooking equipment
- Staff access ingredients without stepping back from the cooking position
- Typically shallower individual compartments than door fridges — better for flat items like portioned proteins and prepped ingredients
- Higher purchase price than door equivalent at the same capacity
- Best for: Under char grills, cooktops, fryers and any cooking line position where workflow continuity matters
Sizing Your Under Bench Fridge
Under bench fridges are sized by internal volume in litres. The right capacity depends on the volume of refrigerated ingredients held at that station during peak service — not your average daily load.
| Capacity | Configuration | Typical Use |
|---|---|---|
| 100–150L | Single door | Small café, supplementary cold storage, low-volume prep station |
| 150–200L | Single door | Standard restaurant prep station, café kitchen, single-cook position |
| 200–300L | Double door | Busy restaurant prep station, hotel kitchen, high-volume café |
| 300–400L | Double or triple door | Large restaurant kitchen, multiple prep positions, catering operations |
| 400L+ | Triple door | High-volume operations, hotel kitchens, institutional food service |
Top-Mount vs Bottom-Mount Condenser
Unlike upright fridges where the condenser is clearly visible, underbench units often have the condenser accessed from the front grille at floor level (bottom-mount) or from the top of the unit. Both have trade-offs in a commercial kitchen environment.
| Top-Mount Condenser | Bottom-Mount Condenser | |
|---|---|---|
| Dust and grease accumulation | Less — sits above floor-level grease and debris | More — floor-level position accumulates grease and dust rapidly in a busy kitchen |
| Cleaning access | Less convenient — unit may need to be pulled out | Easy front access via removable grille — no need to move the unit |
| Heat exhaust | Exhausts upward — less impact on bench-level food | Exhausts at floor level — minimal impact on food prep surface above |
| Best environment | High-grease or dusty kitchens where floor-level accumulation is a concern | Cleaner environments where regular, easy coil cleaning is a priority |
Key Features to Look For
Self-Closing Doors
Essential in a busy kitchen where staff move quickly between positions and doors can be left ajar. A self-closing mechanism protects food safety and energy efficiency without relying on staff remembering to close the door during service. Standard on most commercial-grade under bench fridges — always confirm before purchasing.
Adjustable Shelving
Removable, height-adjustable shelves accommodate gastronorm pans, tall containers and varying prep configurations. Look for epoxy-coated or stainless steel shelves that can be removed for cleaning without tools.
Digital Temperature Display
An external digital temperature display lets staff verify the unit is operating correctly without opening the door. Essential for HACCP compliance and particularly useful in a busy service environment where door checks add up in temperature loss.
Castors
Lockable castors allow the unit to be repositioned for cleaning behind and beneath — a significant hygiene advantage. Not all underbench models include castors as standard; confirm before purchasing if this matters for your cleaning routine.
Gastronorm Compatibility
Confirm the internal shelf dimensions accommodate your standard gastronorm pan sizes before ordering. Some budget models have shelf configurations that don’t accommodate full-size GN1/1 pans — a significant operational limitation in most commercial kitchens.
Australian Food Safety Compliance
- Ambient temperature rating: Australian commercial kitchens can reach 35°C+ in summer. Confirm the unit is rated to maintain 3–4°C internal temperature at your kitchen’s peak ambient temperature — budget models rated to 25°C ambient will struggle in a hot kitchen
- Temperature logging: A unit with an external digital display simplifies daily temperature checks and logging for health authority compliance
- RCM certification: All electrical appliances sold in Australia must carry the Regulatory Compliance Mark — confirm for any imported model
- Ventilation clearance: Most underbench units require adequate front or rear clearance for condenser airflow — blocking ventilation voids the warranty and reduces cooling performance
Installation Considerations
Under bench fridges are straightforward to install but a few site factors are worth confirming before ordering. If you’re also planning drawer fridges under cooking lines or under bench freezers in the same run, plan the full bench layout before ordering any individual unit.
- Bench height compatibility: Standard underbench fridges are designed to fit under a 900mm bench height. Confirm your bench height and whether the unit needs to be adjustable for a flush fit
- Power supply: Most single and double door underbench fridges run on standard single-phase 10A power. Confirm before purchasing — some high-capacity models may require a 15A outlet
- Ventilation: Front-breathing models can be installed in a fully enclosed bench run; rear-breathing models need clearance behind the unit. Confirm the ventilation direction before fitting into a built-in bench configuration
- Floor drain: Underbench fridges produce condensate — confirm there is an appropriate drainage point or drip tray arrangement in your bench run
Brand Guide
| Brand | Position | Strengths | Best For |
|---|---|---|---|
| Skope | Premium | New Zealand-engineered, built for Australian conditions, excellent energy ratings, strong local service network, wide range of configurations | High-volume operations needing long-term reliability and local support |
| Turbo Air | Premium | High-performance compressors, superior temperature stability, strong range of solid and glass door underbench models | Restaurants and café kitchens needing consistent temperature performance under heavy access |
| Hoshizaki | Premium | Japanese engineering, exceptional build quality and longevity, strong energy efficiency across the range | Operators prioritising long lifespan and minimal maintenance |
| Bromic | Mid-Range | Australian brand, strong warranty support, reliable across a broad range of underbench configurations | Restaurants and cafés wanting solid quality with strong local support |
| Skipio | Mid-Range | Korean engineering, competitive pricing, good temperature stability and feature set across the underbench range | Mid-volume kitchens wanting quality above entry-level without premium pricing |
| Polar | Mid-Range | Wide range of solid and glass door underbench models, strong value across the mid-range | Cafés, small restaurants and hospitality start-ups |
| FED | Value | Wide range across single, double and triple door configurations, reliable entry-level to mid-range performance | Budget-conscious operators, start-ups, secondary cold storage positions |
| Atosa | Value | Strong value at entry level, good capacity-to-price ratio on single and double door models | Cost-sensitive operations, food trucks, smaller venues |
Common Buying Mistakes
Avoid These
- Not confirming bench height compatibility — measure your bench height before ordering; a unit that doesn’t fit flush under your bench creates a hygiene problem and a trip hazard
- Choosing a door fridge for under a cooking line — door swing under a char grill or cooktop creates workflow obstruction and a burns risk; drawer configuration is the right choice for these positions
- Ignoring ambient temperature rating — an underbench unit rated to 25°C ambient will struggle in a hot kitchen in summer; always check the rated operating range
- Not confirming ventilation direction — fitting a rear-breathing unit into a fully enclosed bench run blocks condenser airflow, reduces performance and can void the warranty
- Sizing to average stock levels instead of peak service — an underbench fridge that’s adequate mid-week will be overcrowded on a Saturday service; size to your busiest period
- Skipping gastronorm compatibility check — confirm shelf dimensions accommodate your standard GN pan sizes before ordering; finding out after delivery is an expensive fix
Maintenance Schedule
Daily
- Check and log internal temperature — confirm holding at or below 5°C
- Wipe down door handles and exterior surfaces
- Check door seals are closing fully — a worn or dirty seal is the most common cause of temperature drift in underbench units
Weekly
- Clean interior shelves and walls with a food-safe cleaner — remove all product, wipe down and allow to dry before restocking
- Inspect door gaskets for cracks, tears or mould — replace immediately if damaged
- Clear the front ventilation grille of dust and debris — bottom-mount condensers at floor level accumulate grease and dust rapidly in a busy kitchen
Monthly
- Clean condenser coils with a soft brush or vacuum — dust and grease buildup on the condenser is the leading cause of compressor overload and early failure in underbench units
- Check evaporator coils for ice buildup — indicates a door seal issue or defrost system fault
- Pull the unit out from the bench run and clean behind and beneath — grease accumulation in these areas creates both a hygiene issue and a fire risk
- Verify thermostat accuracy with an independent probe thermometer
Frequently Asked Questions
What is the standard height of an under bench fridge?
Most commercial under bench fridges are designed to fit beneath a standard 900mm bench height, with the unit itself typically 850–875mm tall on fixed feet or 840–860mm on castors. Always confirm the exact height of the unit and your bench height before ordering — even a few millimetres can affect whether the unit fits flush. Some models have adjustable feet to accommodate minor height variations.
What’s the difference between an under bench fridge and a drawer fridge?
An under bench fridge uses hinged or sliding doors to access the cabinet interior. A drawer fridge uses pull-out drawers — the right choice for positioning under char grills, cooktops and other cooking equipment where door swing would block workflow or create a safety issue. Drawer fridges are typically shallower per compartment than door fridges of similar footprint but provide faster access at the cooking position.
Can I put an under bench fridge in a fully enclosed bench run?
It depends on the unit’s ventilation direction. Front-breathing models can be installed in a fully enclosed bench run as long as the front grille is unobstructed. Rear-breathing models require clearance behind the unit — installing these in an enclosed bench run blocks condenser airflow, reduces cooling performance and can void the warranty. Always confirm the ventilation direction before specifying an underbench fridge for a built-in bench configuration.
What temperature should an under bench fridge run at?
Australian Food Safety Standard 3.2.2 requires potentially hazardous food to be stored at 5°C or below. Set your underbench fridge to 2–4°C to maintain a safe buffer under real service conditions — a unit set at exactly 5°C will drift above compliance during a busy service when the door is being opened frequently. The unit must hold this temperature reliably under load, not just when empty or during a quiet period.
How much does an under bench fridge cost in Australia?
Entry-level single door under bench fridges from value brands start from around $800–1,200. Mid-range models from Bromic, Skipio and Polar typically sit between $1,200–2,500 depending on capacity and features. Premium models from Skope, Turbo Air and Hoshizaki range from $2,500–5,000+. Drawer fridges command a premium over equivalent door models at all tiers. Factor running costs into the total — a cheap fridge with a poor energy rating running 24 hours a day will cost more over three years than a quality unit bought at a higher upfront price.
How long should an under bench fridge last?
With proper maintenance, a quality commercial under bench fridge should last 8–12 years. Budget units under continuous heavy use may last 4–6 years. The single biggest factor in longevity is condenser coil maintenance — underbench condensers sit at floor level and accumulate grease and debris faster than upright models. Monthly cleaning takes five minutes and directly extends the unit’s lifespan.
