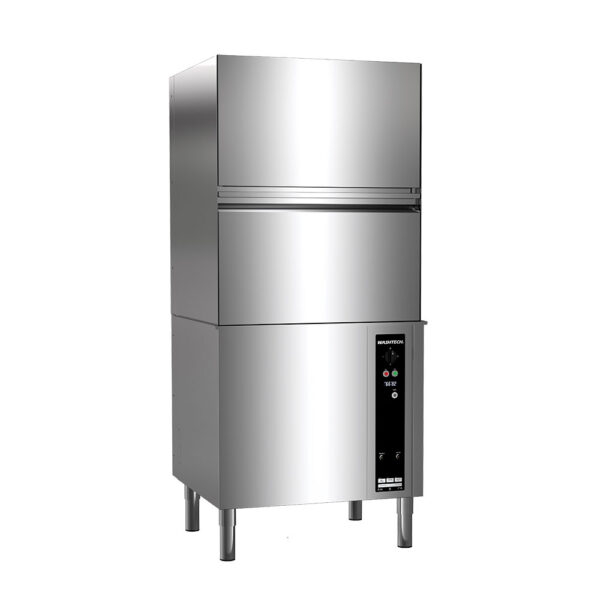

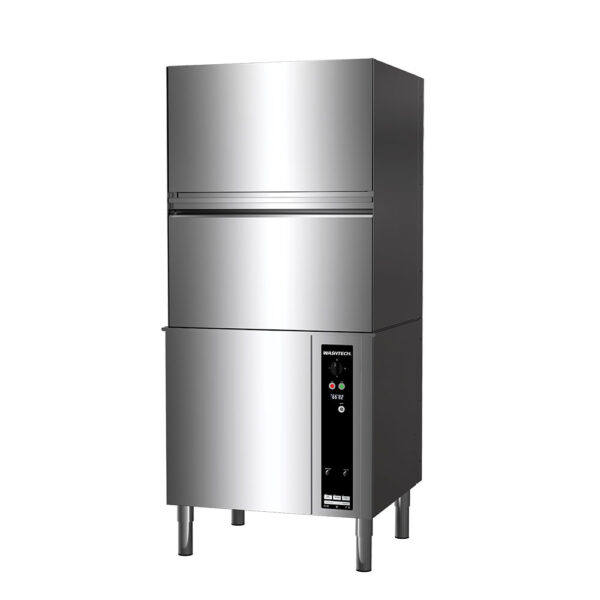

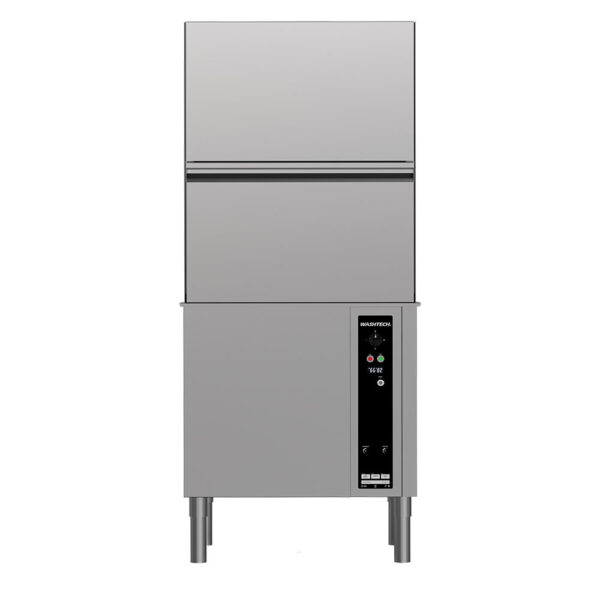

Washtech PW1 Front Loading Warewasher and Pot Washer
The Washtech PW1 Front Loading Warewasher is the ultimate heavy-duty cleanup solution for busy Australian commercial kitchens. Engineered specifically to tackle oversized and heavily soiled items, this powerful utensil and pot washer eliminates time-consuming manual scrubbing. It allows your kitchen staff to focus on food preparation and service instead of fighting baked-on grease.
Whether running a high-volume bakery, a bustling production kitchen, or a busy restaurant, the Washtech PW1 ensures consistent hygiene standards and rapid turnaround times for your most challenging cookware.
Why the Washtech PW1 is Essential for Bakeries
Industrial kitchens face massive volumes of bulky pots, Gastronome (GN) pans, mixing bowls, and baking trays that simply will not fit into a standard commercial dishwasher. The Washtech PW1 is custom-built to bridge this gap.
- Maximised Productivity: Features an expansive front-loading chamber with a massive W720mm x D600mm x H750mm internal capacity. It accommodates bulky items up to 80 litres easily.
- Unrivalled Washing Force: Driven by a high-performance 2.0HP wash pump, the machine recirculates wash water at immense pressure. This ensures computer-designed wash jets strip away stubborn, baked-on proteins and fats without rewash cycles.
- Smart Resource Management: Despite its industrial power, it operates with a remarkably low hot water consumption rate of just 2.2 litres per cycle. This significantly reduces your venue’s electricity, water, and chemical expenditure.
Key Benefits & Operational Advantages
Versatile Cycle Options
Select between 2, 4, and 6-minute wash cycles via the intuitive control panel. This allows operators to perfectly match cycle times to soil levels, optimising kitchen throughput.
Washtech Hybrid Controls
Built for longevity, the hybrid control system combines heavy-duty IP65 stainless steel switches and robust mechanical switchgear with a highly precise electronic timer. This design offers the perfect balance of digital accuracy and simple, breakdown-free electromechanical reliability.
Ergonomic Split-Door Design
The counterbalanced, insulated two-piece door splits effortlessly. This provides seamless front-loading access while retaining heat, dampening wash noise, and keeping your kitchen environment cool.
Assured Sanitisation Rinse
An integrated rinse booster pump ensures that the final fresh-water rinse is delivered at a reliable, constant pressure and sanitising temperature. This completely isolates performance from fluctuations in your building’s mains water pressure.
Standout Technical Features
- Hands-Free Drainage System: Features a built-in sump and automatic drain pump for smooth, effortless water evacuation.
- Two-Stage Filtration: Heavy-duty stainless-steel wash and drain filters trap large food debris, protecting the internal components and keeping the wash water cleaner for longer.
- Dual Chemical Pumps: Automatic, integrated detergent and rinse-aid dosing pumps guarantee precise chemical distribution every cycle.
- All-Stainless Construction: Built with a heavy-duty stainless-steel cabinet, manifold, and independent wash and rinse arms for maximum rust resistance and durability.
Technical Specifications
Dimensions & Weight
- Machine Width: 835 mm
- Machine Depth: 780 mm
- Machine Height: 1790 mm
- Packed Width: 1000 mm
- Packed Depth: 910 mm
- Packed Height: 1750 mm
- Net Weight: 164 kg
- Packed Weight: 189 kg
- Internal Chamber Capacity: W720mm x D600mm x H750mm
Power & Electrical Requirements
The unit is multi-phased configured and must be paired with an isolating switch located within 1 metre of the machine (but not directly behind it).
- Three Phase Option 1: 400-415V, 50Hz, 15A per phase | Max 10.50 kW
- Three Phase Option 2: 400-415V, 50Hz, 25A per phase | Max 18.00 kW
Standard Inclusions & Included Racks
The machine comes complete with a plumbing connection kit (including water and chemical hoses) and the following commercial-grade racks:
- 2x 500mm Dish Racks (Part: 600 70028)
- 1x 500mm Cup Rack (Part: 600 70029)
- 1x Cutlery Container (Part: C660503)
Warranty & Compliance
The Washtech PW1 is fully Water Mark certified and compliant with Australian health and electrical regulations. It is backed by Moffat’s 5-2-2 Warranty (5 years on the stainless-steel cabinet, 2 years on the pump, and 2 years comprehensive parts and labour).
Cleaning & Maintenance Section
Proper maintenance prolongs the life of your pot washer:
- Daily Filters: Empty and rinse the stainless-steel filters after every shift.
- Chamber Care: Wipe interior surfaces while avoiding hosing down the exterior cabinet.
- Arms & Descaling: Check rotation of independent wash/resin arms and run periodic descaling cycles.
Frequently Asked Questions (FAQs)
Q: What items can the Washtech PW1 clean?
A: It is designed for oversized items like commercial pots, baking trays, mixing bowls, and GN pans up to an 80-litre capacity.
Q: Does this warewasher require three-phase power?
A: Yes, it requires a three-phase electrical connection, configurable to either 15 Amp or 25 Amp per phase depending on kitchen requirements.
Q: What are Washtech hybrid controls?
A: They combine robust, waterproof mechanical stainless-steel switches with an accurate electronic digital timer for ultimate reliability.
Q: Does the unit include an automatic drain pump?
A: Yes, it features a hands-free drainage system equipped with an integrated sump and a 25mm flexible drain pump hose.
Q: Is the final rinse water hot enough for commercial sanitisation?
A: Yes, the built-in rinse booster pump ensures the final fresh-water rinse hits consistent, regulatory sanitising temperatures regardless of mains water pressure.
Why Buy from Snowmaster?
With over 80 years of industry experience, Snowmaster offers expert advice and support as premier suppliers of the Washtech range by Moffat. We ensure smooth transitions and zero downtime for your kitchen.
