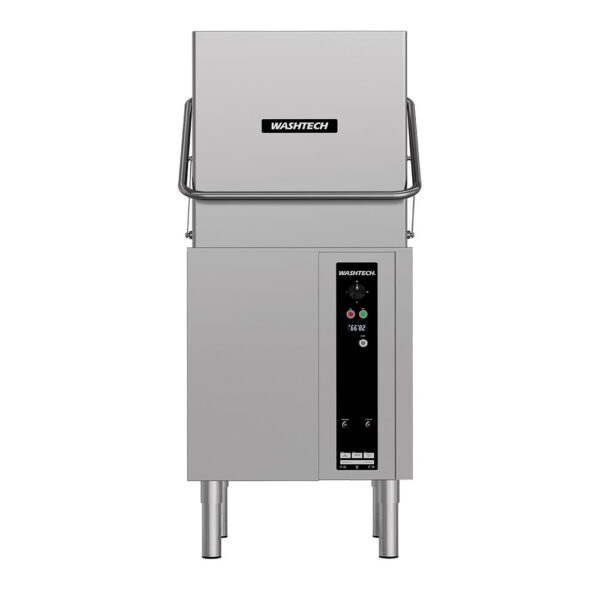

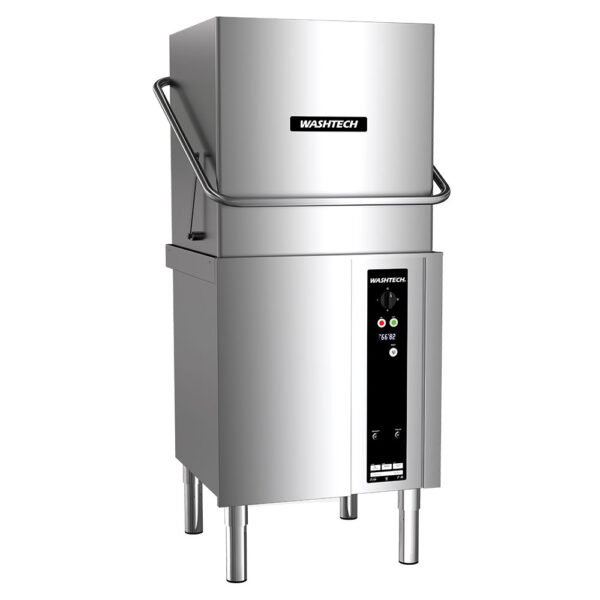

Washtech XL High Capacity PassThrough Dishwasher

Washtech XL High-Capacity Passthrough Dishwasher

The Washtech XL High-Capacity Passthrough Dishwasher is the pinnacle of heavy-duty ware washing. It is engineered to sanitise up to 1,620 dishes per hour in demanding, high-volume commercial kitchens. Designed for fast-paced Australian food service operations, this robust pass-through commercial dishwasher features 40, 60, and 90-second rapid cleaning cycles. It maintains an exceptionally lean 2.2-litre water consumption rate per cycle.

The versatile internal wash chamber is compatible with both standard 500mm racks and oversized 600mm Gastronome tray racks. This compatibility eliminates workflow bottlenecks and protects your staff from strenuous lifting. Whether you manage a large convention centre, a high-turnover pub, or a busy hospital kitchen, investing in the Washtech XL delivers maximum performance. It ensures sparkling results and complete food safety compliance during peak operational rushes.

High-Volume Efficiency for Fast-Paced Kitchen Operations

The main advantage of the Washtech XL is its ability to transform high-volume dishwashing zones into highly efficient, linear pass-through lines. By sliding larger 500mm to 600mm GN racks directly from sorting tables into the wash chamber, kitchen hands work ergonomically without physical strain. This approach speeds up turnaround times and prevents accidental tableware breakages.

The machine features a powerful 1.5HP wash pump. This pump forces high-pressure water streams through heavy-duty stainless steel wash manifolds to slice through baked-on food residues and grease. Despite this immense washing power, the unit limits operational expenses. It uses an atmospheric vacuum breaker backflow prevention system and intuitive hybrid controls to regulate water and energy consumption.

High-Volume Hospitality and Industry Use Cases

• Large-Scale Function Centres and Hotels: Quickly process hundreds of dinner plates, bulky serving platters, and champagne flutes between banquet courses.
• Bustling Gastro Pubs and Clubs: Cycle through heavily soiled pint glasses, mixing tins, and greasy burger baskets using the ultra-fast 40-second rapid cycle.
• Hospitals and Commercial Production Kitchens: Wash large 600mm Gastronome trays and baking sheets side-by-side with standard dish racks to maintain seamless food prep workflows.
• High-Capacity Schools and Aged Care Facilities: Achieve verified thermal sanitisation standards to reliably protect vulnerable residents and diners.

Operational Advantages and Core Benefits

• Oversized Ware washing Capabilities: Accepts specialized 600mm GN tray racks alongside standard 500mm choices, maximizing versatility across diverse kitchen types.
• Excellent Utility Savings: Low 2.2L per cycle water usage drastically cuts down ongoing water, power, and chemical costs.
• Intuitive Operator Control: Equipped with reliable hybrid selectors that adjust smoothly to high-power environments or rapid rinse recovery modes.
• Automated Effluent Removal: The hands-free auto-drain pump expels dirty wash tank water automatically at the close of service without manual lifting.
• Smart Chemical Delivery: Dual built-in chemical pumps inject exact amounts of commercial detergent and rinse aid to ensure brilliant, streak-free drying results.

Key Features

• Three High-Speed Cycles: Features 40, 60, and 90-second programmable washing cycles to handle varying soil levels.
• Wide Rack Compatibility: Accommodates 500mm to 600mm commercial kitchen dish, cup, and tray racks.
• Heavy-Duty Wash System: Durable stainless steel wash manifolds, arms, scrap trays, and dual filters handle rigorous daily reuse.
• Complete Attachment Kit: Ships with a comprehensive connection hose kit and electrical plug sets for a hassle-free commercial installation.
• Rugged Construction: Built from premium industrial components to withstand wet, demanding food service environments.

Technical Specifications

Dimensions and Capacity

• Machine Width: 775 mm
• Machine Depth: 710 mm
• Machine Height: 1530 mm
• Machine Weight: 120 kg net (Packed weight: 141 kg)
• Internal Volume: 0.91 m³
• Maximum Cleaning Output: Up to 1,620 dishes per hour

Power and Electrical Requirements

The Washtech XL provides versatile electrical configuration paths to suit your site’s power availability:

• Three Phase Option: 400-415V, 50Hz, 15 Amp per phase (Maximum 10.80 kW)
• Single Phase Option 1: 230-240V, 50Hz, 15 Amp (Maximum 3.60 kW)
• Single Phase Option 2: 230-240V, 50Hz, 25 Amp (Maximum 6.10 kW)

Water and Drainage Specifications

• Hot Water Connection: 3/4” male thread, flexible inlet hose supplied
• Inlet Feed Temperature: Recommended 65°C
• Water Pressure Parameters: 200–350 kPa
• Water Flow Volume: 20 Litres per minute
• Drainage Hose Type: 25mm flexible drain pump hose

Inclusions

Every brand new Washtech XL high-capacity dishwasher includes:

• 1x 600mm GN tray rack (Part Number: 600 70042)
• 1x 500mm heavy-duty dish rack (Part Number: 600 70028)
• 1x 500mm non-scratch cup rack (Part Number: 600 70029)
• 1x Commercial cutlery basket (Part Number: C660508)
• 1x Durable cutlery container (Part Number: C660503)
• 1x Full connection kit containing all necessary supply hoses

Cleaning and Maintenance Section

Enforcing daily cleaning protocols extends the operational lifespan of your Washtech XL and helps prevent costly down-time:

1. Clear Scrap Trays Daily: Pull out the heavy-duty stainless steel scrap trays at the close of service and discard food debris.
2. Rinse Filter Assemblies: Remove the stainless-steel wash and drain filters and clean them under warm water to clear fine residues.
3. Inspect Wash Arms: Check the upper and lower stainless steel wash manifolds periodically; ensure the water jets are clear of mineral or food blockages.
4. Run Auto-Drain Nightly: Engage the hands-free auto-drain feature to empty the wash tank completely. This step ensures fresh water for your next shift.

Warranty and Compliance

Distributed throughout Australia by Moffat PTY Limited, the Washtech XL is backed by a comprehensive 5-2-1 Warranty Program:

• 5 Years parts warranty on the structural tank framework.
• 2 Years parts warranty on the wash pump motor.
• 1 Year full parts and labour warranty covering the entire machine.

The equipment is fully Water Mark certified and includes an integrated atmospheric vacuum breaker. This layout guarantees backflow prevention compliance with Australian commercial plumbing standards.

Why the Washtech XL is Ideal for Large Capacity Commercial Kitchens

High-volume operations cannot afford a breakdown at the dishwashing station. The Washtech XL stands out as a premier investment because it handles massive throughput without expanding your floor layout footprint. Manufactured in New Zealand using premium, locally accessible components, it is engineered specifically for demanding Australian hospitality conditions.

Its hybrid control interface replaces delicate digital touchscreens with robust, tactile mechanical selectors that tolerate wet hands and heavy commercial use. The physical configuration is exceptionally flexible; it functions beautifully as a standard straight line or tucked into a tight corner. For corner installations, simply face the machine left so operators can safely access the control dial while maintaining a 300mm front clearance for quick servicing.

Frequently Asked Questions (FAQs)

Q: Can the Washtech XL run on a single-phase electrical supply?
A: Yes, it can. Out of the box, the unit can be wired to run on either a standard 15 Amp single-phase supply (max 3.60 kW) or a 25 Amp single-phase supply (max 6.10 kW). For rapid heat recovery during back-to-back high-volume shifts, it can also be configured for a 15 Amp per phase three-phase setup.

Q: Does this high-capacity unit require a gravity drain line?
A: No gravity drain is required. The Washtech XL comes standard with a hands-free auto-drain pump and a 25mm flexible drain hose. This configuration allows the machine to drain correctly even if your building’s waste pipe outlet is elevated.

Q: What size racks can be loaded into this pass-through dishwasher?
A: This unit features an expanded internal chamber that fits standard 500mm x 500mm dish and cup racks, as well as oversized 600mm Gastronorm tray racks. This capability makes it highly versatile for kitchen setups using large bakeware or catering platters.

Q: What are the incoming water pressure requirements for this machine?
A: To maintain the optimized 2.2-litre water consumption rate per cycle, your incoming water supply pressure must be between 200 kPa and 350 kPa, with a steady flow rate of 20 litres per minute.

Q: Are there water quality limitations to keep the factory warranty valid?
A: Yes. Your supply water must maintain a pH level between 7 and 8, and Total Dissolved Solids (TDS) must remain between 1 and 135 ppm. If your kitchen operates in a hard water area, installing a commercial water treatment filter protects the heating elements.
