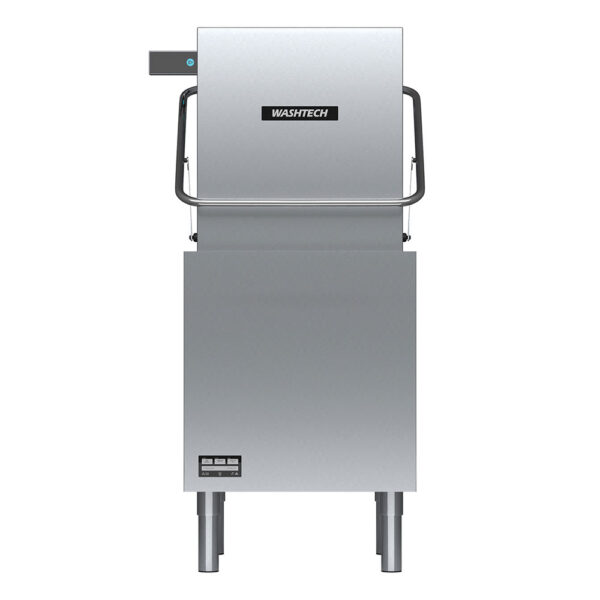

Washtech M2-605 Passthrough Dishwasher Narrow Gauge Cabinet

Washtech M2-605 Passthrough Dishwasher with Narrow Gauge Cabinet

The Washtech M2-605 Passthrough Dishwasher is a heavy-duty, high-capacity commercial hood-type dishwasher built specifically for streamlined integration into spatial-restricted Australian hospitality layouts. Combining a specialized 607mm width narrow gauge cabinet with a standard 500mm rack configuration, this clever system delivers full-scale pass-through output while taking up significantly less counter frontage than traditional industrial hood machines. It easily processes up to 1,080 clean plates per hour, accelerating kitchen hand productivity during intensive trade periods. Distributed across Australia by Moffat, the Washtech M2-605 features a modern Heads-Up Display, integrated chemical dosing pumps, and two-stage water filtration to ensure impeccable hygiene standards while fitting where standard hood-type washers cannot.

Optimised for small tight kitchens

In a busy, fast-paced food service environment, kitchen layout space can dictate your entire operational capability. Standard pass-through washers usually require wide structural gaps that push out into valuable walking paths or storage zones. The Washtech M2-605 bypasses this bottleneck entirely with its slimmed-down external chassis, enabling smaller establishments to benefit from rapid hood-style washing speeds.

This specialized space-saving passthrough washer provides clear operational strengths across several hospitality applications:

• Narrow Wash Bays and Alleyways: Slots into restrictive, tight dishwashing alcoves where a standard 750mm+ width machine simply will not clear.
• Inner-City Cafes and Bars: Maximizes behind-the-counter floor area, giving staff extra space for refrigeration or food preparation equipment.
• Medium-Sized Bistros and Pizzerias: Clears thick food residues and grease off dinner plates and serving boards at extreme speeds via its 1.0HP wash pump motor.
• Boutique Catering Operations: Functions as a compact yet high-volume cleaning hub to maintain a continuous rotation of clean service platters.

Key Benefits and Operational Advantages

• Slimline Cabinet Footprint: The narrow 607mm external body width ensures the unit can adapt to tight spaces where space optimization is the primary goal.
• No Loss of Basket Capacity: Despite the compact external footprint, the interior chamber still accommodates full-sized standard 500mm x 500mm washing racks.
• Heads Up Display Navigation: Outfitted with premium touchscreen controls paired with an intelligent Heads-Up Display (HUD) for instantaneous tracking of cycle phases.
• Low Hot Water Overhead: Restricts moisture usage to just 2.4 litres of hot water per cycle, driving down commercial water and heating expenses.
• Flexible Wash Timing: Offers simple 60, 120, and 180-second automated cleaning loops to handle varying levels of baked-on food soil.

Premium Features & Heavy-Duty Engineering

• 1.0HP Soft Start Wash Pump: Delivers a heavy, high-velocity spray to strip grease while safeguarding fragile crockery from shifting violently upon startup.
• Two-Stage Core Filtration: Employs a specialized two-stage stainless steel wash and drain filter system to trap floating debris and shield internal pump mechanics.
• Independent Wash & Rinse Arms: Fitted with dual top and bottom independent stainless-steel spray structures to achieve total, edge-to-edge coverage.
• Pre-Dosed Chemical Injection: Features built-in automatic dual chemical pumps that feed precise amounts of detergent and rinse aid on every cycle.
• Hands-Free Auto Drainage: Houses an automated drainage layout with a built-in drain pump to evacuate wastewater smoothly without manual intervention.

Technical Specifications

• Equipment Type: Passthrough Dishwasher – Narrow Gauge Cabinet
• Model / SKU: Washtech M2-605
• Rack Size Compatibility: Standard 500mm x 500mm racks
• Wash Cycles: Programmable 60, 120, and 180-second cycles
• Hourly Output Capacity: Up to 1,080 dishes per hour
• Water Consumption: 2.4 Litres per cycle
• Wash Pump Motor: Heavy-duty 1.0HP with soft start protection
• Net Volume: 0.91 cubic metres
• Packed Weight: 125 kg
• Inclusions: 2x 500mm dish racks, 1x 500mm cup rack, 1x cutlery container, and 1x quick-connection plumbing kit.

Dimensions

• External Width: 735 mm (Cabinet width: 607mm)
• External Depth: 710 mm
• External Height: 1530 mm
• Benchgap Width: 595 mm

Power & Electrical Requirements

• Electrical Supply: 230-240V, Single Phase 15amp or Single phase 25 amp, or three phase 15amp per phase
• Power Adaptability: Updateable power option configurations for ultra-fast rinse temperature recovery during peak periods

Warranty and Compliance

The Washtech M2-605 is built in total compliance with strict Australian commercial hygiene and plumbing safety regulations. It comes backed by Moffat’s premium 5-2-2 warranty network:

• 5 Years structural coverage on the Stainless-Steel Cabinet panels
• 2 Years on the Wash Pump components (parts and labour)
• 2 Years comprehensive Parts and Labour coverage across the entire unit

Daily Cleaning & Routine Maintenance

To safeguard your investment and maintain streak-free dishwashing results, execute these brief cleaning steps at the end of every trade shift:

1. Drain the Wash Tank: Activate the hands-free automated drain function via the touchscreen controls to empty the interior tank.
2. Wash the Two-Stage Filters: Slide out the two-stage stainless steel wash and drain filtration screens, clear out trapped food waste, and rinse them.
3. Inspect Spray Nozzles: Check that the upper and lower independent stainless-steel arms spin smoothly and are clear of debris or seeds.
4. Wipe down the Interior: Wipe clean the interior hood tracking and rubber door surfaces with a soft, damp cloth.

Why Choose the Washtech M2-605 For Your Kitchen?

Choosing between a compact under bench dishwasher and an industrial passthrough hood machine usually forces a tough operational compromise. Under bench units save space but slow down your staff, while traditional hood washers offer incredible turnaround speeds but take up immense floor area. The Washtech M2-605 resolves this compromise perfectly. Its 607mm wide narrow gauge cabinet mimics the footprint of an undercounter washer, yet its pass-through design lets your dishwashing staff slide racks through linearly at eye level. Driven by a 1.0HP pump and featuring a clear Heads-Up Display, it provides true high-volume industrial washing power without devouring your commercial kitchen’s layout space.

Frequently Asked Questions (FAQs)

Q: How does the narrow-gauge cabinet affect the type of racks I can use?
A: It does not restrict your rack choices at all. While the external cabinet width is slimmed down to 607mm to save space, the internal chamber is engineered to accept standard, full-sized 500mm x 500mm commercial ware washing racks.

Q: What information does the Heads-Up Display (HUD) provide to staff?
A: The touchscreen Heads Up Display provides bright, easily scannable progress updates that can be monitored across a busy kitchen, letting staff know exactly how much time remains on the cycle without having to walk up to the machine.

Q: Can this unit be converted to handle rapid back-to-back washing cycles?
A: Yes. The machine features updateable power option setups. This allows an authorized technician to adjust the heating element configuration on-site, accelerating rinse water temperature recovery times during intense, non-stop washing periods.

Q: Does the integrated soft start feature reduce the cleaning power of the pump?
A: Not at all. The heavy-duty 1.0HP motor delivers a high-velocity wash spray. The soft start feature merely builds that immense water pressure up over a few seconds at the start of the cycle, keeping lightweight plates and cups from moving around or shattering.

Q: What components are provided standard in the box with the M2-605?
A: Every unit ships fully loaded with a complete quick-connection installation kit, 2x 500mm dish racks, 1x 500mm cup rack, and 1x cutlery container, letting you start washing dishes immediately after plumbing and power connection.
