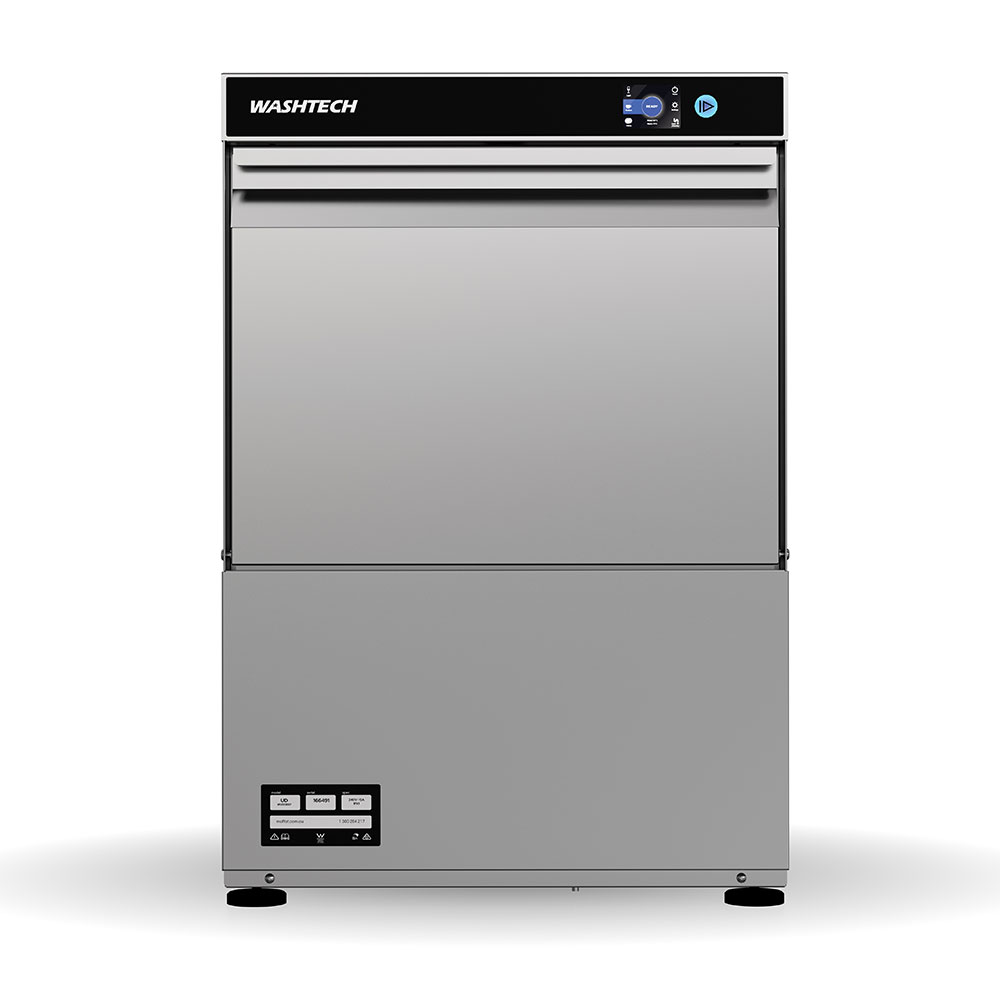

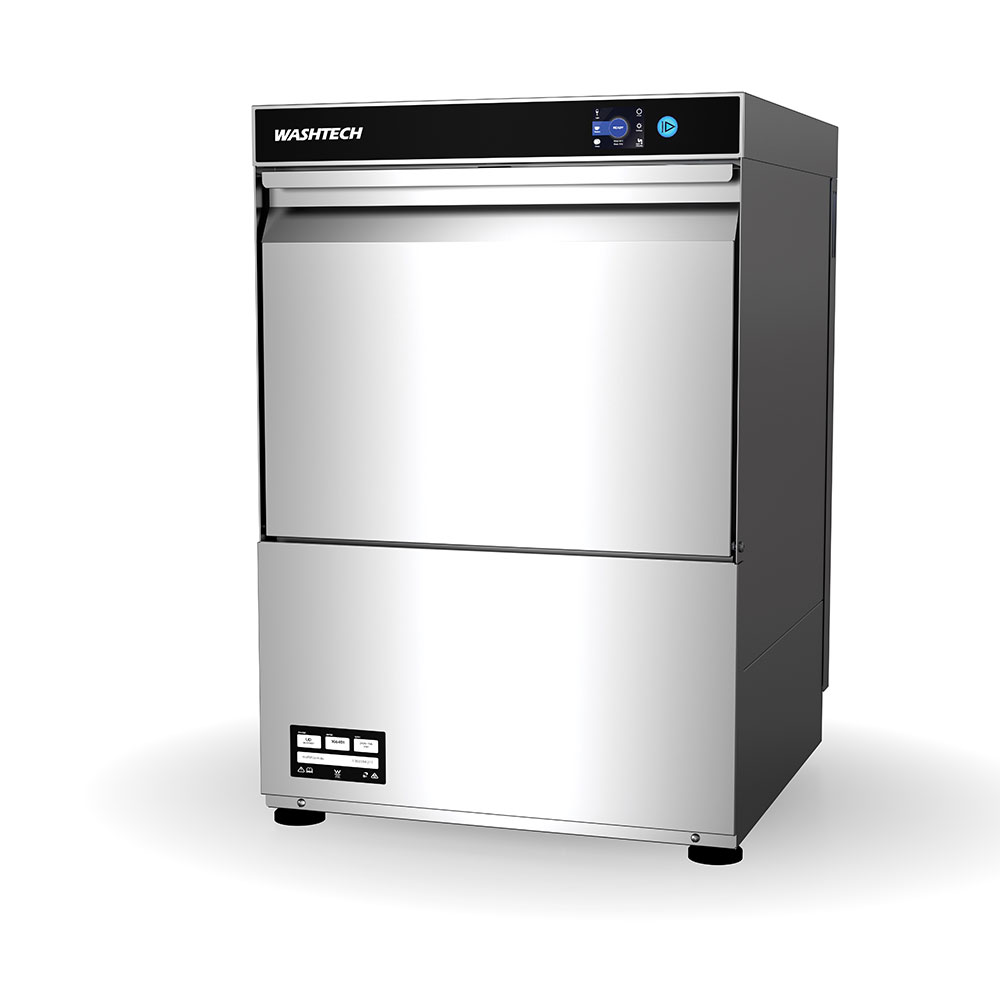

Washtech UL Undercounter Dishwasher / Polish-Free Glasswasher
The Washtech UL Undercounter Dishwasher / Polish-Free Compatible Glasswasher is the premier space-saving sanitation powerhouse for modern Australian hospitality venues. Designed to slide effortlessly beneath standard commercial bars and kitchen benches, this versatile machine transitions between a high-capacity commercial dishwasher and a precision, polish-free glasswasher.
Whether you operate a high-end wine bar, a busy boutique cafe, a restaurant, or an intimate hotel lounge, the Washtech UL ensures sparkling results. It eliminates the need for manual glass polishing. This allows your front-of-house team to focus purely on delivering exceptional guest experiences rather than wiping down glassware.
Why the Washtech UL is Best for High End Commercial Kitchens and Bars
A streamlined drink and dining service relies heavily on rapid cleanup turnover and flawless hygiene standards. The Washtech UL is engineered specifically to meet these intense hospitality demands within a compact, space-saving footprint.
- Polish-Free Glass washing Capability: When paired with the optional BA14-DW14 upgrade kit and reverse osmosis (RO) cold water supply, the unit delivers pristine, streak-free glasses. This process stops water spotting entirely. It eliminates the physical labour, towel costs, and breakages associated with manual polishing.
- Massive Hourly Output: Despite its compact undercounter profile, the unit boasts an incredible wash capacity. It handles up to 1,080 plates or 1,500 glasses per hour to keep up with peak weekend rush periods.
- Advanced Acoustic Insulation: Built with full cabinet insulation and a soft-close door mechanism. This design dampens operational noise, making it suitable for front-of-house bar placements where guest ambiance is paramount.
Key Benefits & Operational Advantages
Advanced Touchscreen Controls
Equipped with a modern digital touchscreen interface that gives owners and managers advanced customization control. Kitchen staff can seamlessly toggle settings, monitor wash temperatures, and select cycles with minimal training.
Flexible Rapid Programs
Select between 1, 2, and 3-minute wash programs directly from the touchscreen panel. This allows bartenders or kitchen hands to easily match cycle durations to light or heavy food and beverage residues.
Soft-Start Wash Pump Protection
Features a specialised 0.5HP soft start wash pump. By gradually building up water recirculation pressure, it protects delicate wine stems, fine crystal glasses, and fragile chinaware from sudden movement or chipping during the initial cycle startup.
Assured Rinse Technology
Equipped with an atmospheric break tank and a dedicated rinse booster pump. This configuration ensures the final fresh-water rinse is delivered at a consistent, high-velocity pressure and sanitising temperature, entirely isolated from local building mains water fluctuations.
Comprehensive Suite of Standard Features
- Dual Chemical Pumps: Automatic, integrated detergent and rinse-aid dosing systems dispense precise quantities every cycle for consistent cleanliness.
- Hands-Free Drainage System: Built-in automatic sump and drain pump ensure quick, hassle-free water evacuation without relying on gravity.
- Tilting Rack Slide Compatibility: Accommodates versatile rack setups, allowing the use of 365mm up to standard 500mm commercial wash racks.
- Fast Clean Filtration System: Equipped with a heavy-duty stainless steel scrap tray and waste basket that traps large debris to protect internal water components.
- Rugged All-Stainless Build: Manufactured with robust stainless-steel wash and rinse arms with independent action and precision-engineered jets.
- Premium Aesthetics Available: Beyond classic stainless steel, the machine can be ordered in stylish mirror or matte black stainless-steel finishes (UL-B) to match premium bar decors.
Technical Specifications
Dimensions, Weights & Volume
- Machine Width: 597 mm
- Machine Depth: 600 mm
- Machine Height: 840 mm
- Packed Width: 620 mm
- Packed Depth: 675 mm
- Packed Height: 940 mm
- Net Weight: 75 kg
- Packed Weight: 78 kg
- Packed Volume: 0.39 m³
Power & Electrical Options
The power configuration can be uprated on-site to suit rapid rinse recovery needs:
- Single Phase Option 1: 230-240V, 50Hz, 15A | Max 3.37 kW
- Single Phase Option 2: 230-240V, 50Hz, 25A | Max 5.37 kW
- Three Phase Option: 400-415V, 50Hz, 15A per phase | Max 9.00 kW (Delivers up to 8kW on 3p/15A for ultra-fast rinse recovery).
- An isolating switch must be positioned within 1 metre of the unit and not directly behind the machine cabinet.
Water & Plumbing
- Inlet Water Temperature: 20–65°C (Suitable for cold water connection; higher amperage power like 1p/25A or 3p/15A is recommended with cold water to minimise cycle recovery times).
- Consumption & Connection: Uses a highly efficient 2.4L of water per cycle via a 3/4” male connection.
- Drain Pump Flexi-Hose: 25 mm diameter.
- Backflow Prevention: Built-in atmospheric vacuum breaker.
Standard Inclusions & Included Racks
The unit arrives with a quick-connection kit including all necessary water, chemical, and drainage hoses, a 1-phase 15A plug set, and the following commercial-grade racks:
- 1x 500mm Dish Rack (Part: 600 70028)
- 1x 500mm Cup Rack (Part: 600 70029)
- 1x Cutlery Container (Part: C660503)
Warranty & Compliance
The Washtech UL is fully compliant with strict Australian electrical, plumbing, and health safety standards, featuring Water Mark approval and built-in backflow prevention. Distributed nationally via Moffat, it is backed by their comprehensive 5-2-2 Warranty (5 years on the stainless-steel cabinet, 2 years on the pump, and 2 years covering parts and labour) alongside an impressive 15-year parts support guarantee.
Cleaning & Maintenance Section
Proactively maintaining your undercounter dishwasher ensures optimal hygiene and machine longevity:
- Daily Waste Basket: Lift out, empty, and rinse the heavy-duty stainless steel scrap tray and waste basket at the end of every business day.
- Chamber and Seal Care: Wipe down the interior wash chamber and the soft-close door seal with a damp cloth to prevent grime buildup.
- Nozzle Inspections: Check the independent stainless-steel wash and rinse arm jets regularly, clearing any mineral scale or sediment to maintain precise spray vectors.
Frequently Asked Questions (FAQs)
Q: What does “polish-free compatible” mean for the Washtech UL?
A: It means the unit can be upgraded with a specialized kit (BA14-DW14) and a cold reverse osmosis water line. This configuration leaves stemware completely streak-free and spot-free, eliminating manual cloth polishing.
Q: Can I connect this dishwasher directly to a standard cold-water line?
A: Yes, it is suitable for cold water connections. However, to maintain rapid recovery times between back-to-back cycles when using cold water, it is highly recommended to configure the unit with a 1-phase 25A or 3-phase 15A electrical supply.
Q: Will this machine fit under a standard bar bench?
A: Yes, with a compact machine width of 597mm, a depth of 600mm, and an overall height of 840mm, it is designed to sit comfortably underneath standard Australian commercial bar benches.
Q: What is the benefit of the soft start wash pump function?
A: The 0.5HP soft-start pump builds water pressure gradually at the beginning of a cycle. This stops delicate wine glasses and chinaware from shifting violently, preventing cracks and breakages.
Q: Does it include automatic chemical dispensers?
A: Yes, the machine is factory-fitted with integrated dual chemical pumps that automatically draw and dose the exact amount of detergent and rinse aid needed for every cycle.
