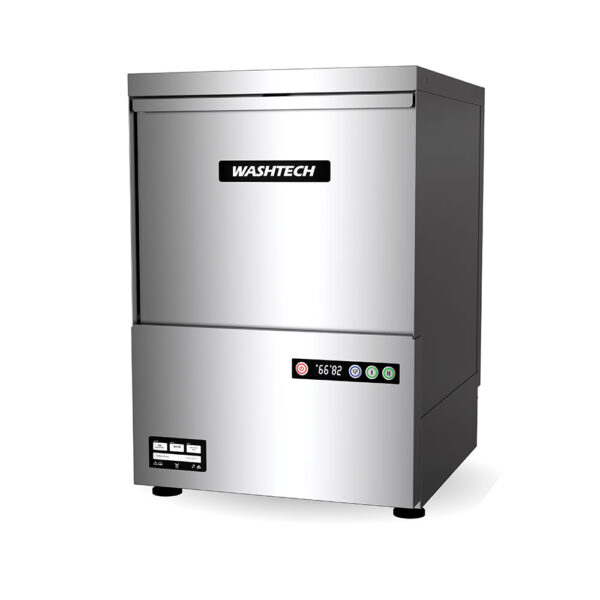

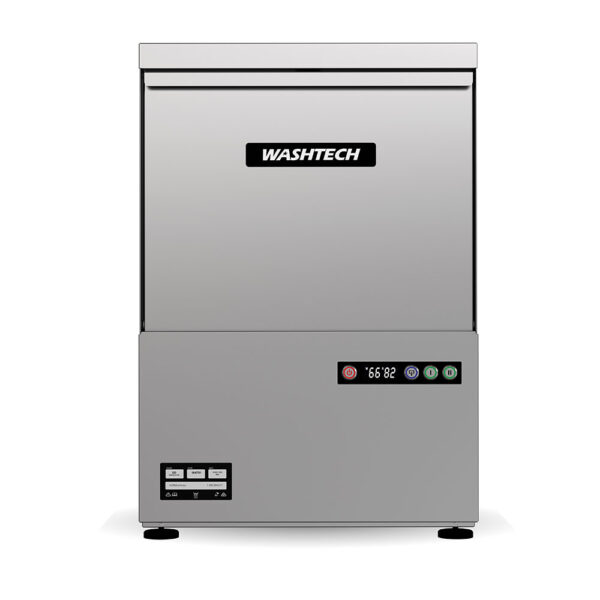

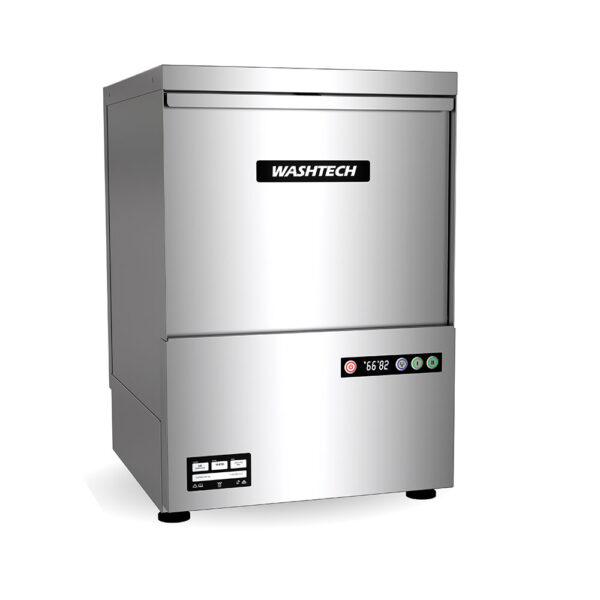

Washtech XD Undercounter Dishwasher
The Washtech XD Undercounter Dishwasher is a high-performance, heavy-duty commercial dishwasher engineered specifically to handle the intense demands of Australian hospitality environments. Combining a compact under-bench footprint with an oversized wash chamber, this robust 500mm rack commercial dishwasher is uniquely capable of washing both standard crockery and large GN 1/1 gastronome pans at a rapid rate of up to 1,080 dishes or 240 pans per hour. Supplied across Australia by Moffat, the Washtech XD features a reliable hybrid control system, built-in chemical dispensing, and an integrated drain pump, making it the ultimate undercounter wash station for busy commercial kitchens.
Washtech’s newest under counter dishwasher for the hospitality industry
In a high-pressure commercial kitchen, floor space is at a premium and turnaround time is critical. The Washtech XD bridges the gap between compact undercounter convenience and high-capacity pass-through performance. Its spacious 500mm x 560mm x 390mm internal wash chamber accepts oversized platters, baking trays, and gastronome pans that typically require hand-washing or a much larger machine.
This versatile dishwasher delivers immediate operational advantages across a variety of food service sectors:
- Cafes and Boutique Restaurants: Easily slides under standard stainless-steel benches to wash breakfast plates, coffee cups, and lunch service crockery without disrupting workflow.
- Bistros and Commercial Kitchens: Elevates kitchen hand efficiency by jumping between fine porcelain dinnerware and heavy-duty GN 1/1 kitchen pans.
- Catering Operations & Prep Kitchens: Eliminates backlogs of deep food pans and preparation trays during peak turnaround windows.
- Bars and Clubs: Functions as a high-capacity glasswasher and plate washer, ensuring a steady supply of clean, sanitized service items.
Key Benefits and Operational Advantages
- Unmatched Versatility: Unlike standard under bench units that restrict you to standard plates, the XD’s wide chamber configuration means your kitchen hands can wash cooking vessels and front-of-house dinnerware simultaneously.
- Rapid Wash Cycles: Select between ultra-fast 1-minute and 2-minute wash cycles to maintain an uninterrupted flow of clean dishes back to the pass.
- Water and Energy Efficiency: Consuming just 2.2 litres of hot water per cycle, the machine significantly lowers your utility bills while maintaining thermal compliance standards.
- Smart Chemical Integration: Features an internal Smart power Mini solid chemical dispenser, ensuring precise detergent dosing for spotless results without manual handling or chemical wastage.
- Simplified Installation: The unit arrives as a “plug-and-play” package with all necessary water supply hoses, drain hoses, and a pre-fitted 15A single-phase plug set.
Premium Features & Heavy-Duty Engineering
- Washtech Hybrid Controls: Combines a dependable electromechanical core with modern interfaces for reliable operation and simple troubleshooting.
- High-Performance 0.5HP Wash Pump: Delivers a powerful, consistent water spray through independent upper and lower wash and rinse arms.
- Hands-Free Sump Drainage: An integrated commercial drain pump manages wastewater automatically, avoiding the manual draining headaches common with gravity-drain units.
- Stainless Steel Filtration: Fitted with robust stainless-steel wash and drain filters to capture food scraps and preserve pump longevity.
- Full Stainless-Steel Construction: Built with heavy-gauge, fully welded stainless steel panels and a durable cabinet body to endure years of slamming doors and heavy crates.
Technical Specifications
- Equipment Type: Commercial Undercounter Dishwasher & Pan Washer
- Model / SKU: Washtech XD
- Rack Size: 500mm x 500mm standard racks
- Wash Cycles: Fast 1 and 2-minute cycles
- Hourly Output Capacity: Up to 1,080 dishes / 240 GN 1/1 pans per hour
- Water Consumption: 2.2 Litres per cycle (requires hot water connection)
- Wash Pump Motor: High-performance 0.5HP pump
- Net Weight: 54 kg (Packed weight: 64 kg)
- Inclusions: 1x 500mm open-ended dish/tray rack, 1x 500mm cup rack, 1x cutlery container, water inlet hose, drain hose, and 15A plug set.
Dimensions
- External Width: 570 mm
- External Depth: 650 mm
- External Height: 840 mm
- Internal Wash Chamber: 500mm (W) x 560mm (D) x 390mm (H)
Power & Electrical Requirements
- Electrical Supply: 230-240V, Single Phase, 50Hz
- Connected Load: 3.37 kW
- Amperage: 15A (supplied with plug set)
Warranty and Compliance
The Washtech XD is fully Watermark approved with built-in backflow prevention, ensuring complete compliance with Australian commercial plumbing regulations. It is backed by Moffat’s comprehensive industry-leading 5-2-2 warranty package:
- 5 Years on the Stainless-Steel Cabinet parts
- 2 Years on the Wash Pump parts and labour
- 2 Years comprehensive Parts and Labour coverage across the entire machine
Daily Cleaning & Routine Maintenance
To protect your investment and maintain stellar hygiene results, follow these straightforward daily practices:
- End-of-Day Drain: Use the automated hands-free auto-drain system to empty the wash tank completely.
- Filter Clean: Remove the premium stainless-steel wash and drain filters, rinse away any trapped food debris, and place them back into position.
- Inspect the Arms: Periodically unscrew the upper and lower wash/rinse arms to check that the water jets are free of scale or foreign matter.
- Wipe down: Wipe down the internal door seal and stainless-steel surfaces with a damp microfibre cloth. Do not use abrasive scouring pads.
Why Choose the Washtech XD for your café or restaurant?
Standard under bench dishwashers is designed primarily for flat plates and coffee cups. When a kitchen hand forces a large gastronome tray or deep prep pan into a standard machine, it blocks the spray pattern, leading to poor wash results and re-washing delays. The Washtech XD eliminates this bottleneck entirely. Its deep chamber profile handles large-format kitchenware comfortably. Combined with heavy-duty construction and rapid 60-second turnarounds, this under bench unit delivers the brute strength of a pass-through hood machine without sacrificing valuable floor layout space.
Frequently Asked Questions (FAQs)
Q: Can the Washtech XD fit standard 1/1 Gastronome pans?
A: Yes. The internal wash chamber measures 500mm x 560mm x 390mm, allowing it to easily accommodate oversized platters, baking trays, and GN 1/1 pans when utilized with the provided open-ended tray rack.
Q: Does this commercial dishwasher require a specialized electrical connection?
A: The Washtech XD runs on standard 230-240V single-phase electrical power and requires a 15A outlet. It comes pre-installed with a 15A plug set, meaning you do not need a complex 3-phase electrical upgrade to use it.
Q: Is a separate drain pump required for installation?
A: No. The Washtech XD comes standard with an integrated, hands-free automated drain pump system. It automatically pumps out wastewater during the drain cycle, which makes it perfect for setups where the plumbing wall outlet is higher than the base of the dishwasher.
Q: How much water does the unit use per cycle?
A: The machine is highly water-efficient, using only 2.2 litres of hot water per cycle. This helps lower your business’s utility costs while still achieving a perfect, hygienic sanitising rinse.
Q: What is included in the box when I purchase a Washtech XD?
A:Every unit comes fully equipped with a comprehensive quick-connection installation kit (all water and drain hoses), a 15A plug set, 1x 500mm open-ended dish/tray rack, 1x 500mm cup rack, and 1x cutlery container.
