Washtech TW Undercounter Traywasher

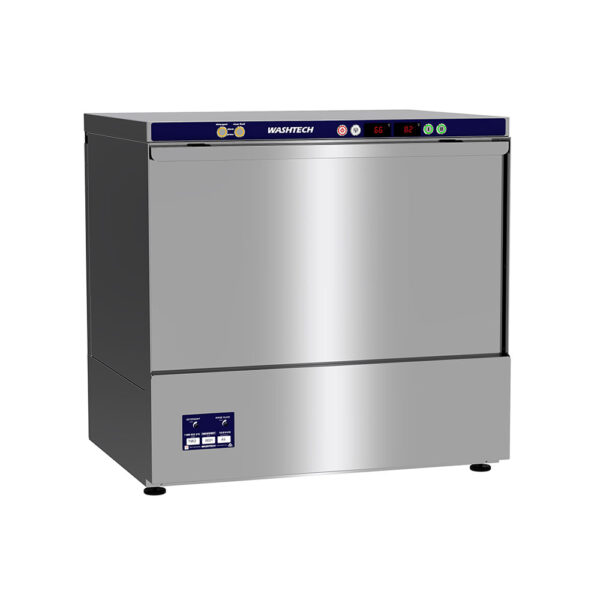

Washtech TW Undercounter Tray washer

The Washtech TW Undercounter Tray washer is the ultimate space-saving sanitation workhorse engineered specifically for compact Australian commercial kitchens, artisan bakeries, and boutique patisseries. Designed to slide effortlessly beneath standard kitchen benches, this heavy-duty undercounter tray washer bridges the gap between small glasswashers and massive pot washers.

It features an oversized internal washing chamber and dual wash and rinse systems that easily accommodate baking trays, mixing bowls, and large preparation utensils. It eliminates the time-consuming chore of manual sink scrubbing while ensuring strict commercial hygiene compliance for your business.

Why the Washtech TW is Perfect for Large Busy Commercial Kitchens

Boutique bakeries, medium-sized cafes, and specialty food prep areas handle large volumes of greasy baking sheets and bulky mixing equipment daily. Standard commercial undercounter dishwashers simply do not have the internal clearance to fit these items, while traditional pot washers demand too much floor space. The Washtech TW provides a highly effective solution.

• Oversized Internal Clearance: Built with a vast usable internal washing chamber (W 800mm x D 545mm x H 470mm). It accommodates large baking trays, mixer bowls, dinner plates, and tall kitchen utensils with ease.
• Quik Connect Plug & Play Installation: Arrives factory-configured with a standard 15 Amp plug set, requiring no complex commissioning or expensive multi-phase electrical rewiring.
• Resource-Efficient Performance: Despite its incredible industrial strength, the machine runs on a remarkably low hot water consumption rate of just 3.3 litres per cycle. This lowers your venue’s daily water, chemical, and heating electricity costs.

Key Benefits & Operational Advantages

Versatile Rapid Service Cycles

Select between 2 and 4-minute wash programs directly from the intuitive control panel. This lets kitchen hands instantly match machine speeds to soil levels, clearing light bread trays in 120 seconds or blasting heavily baked-on fats in 4 minutes.

Washtech Hybrid Controls

Built for maximum durability in harsh, wet hospitality environments, the hybrid control setup pairs water-resistant IP65 stainless steel switches and tried-and-tested electromechanical switchgear with a highly reliable, customisable electronic timer.

Triple Stainless-Steel Filtration

Features an advanced triple-filtration layout including dual stainless steel scrap trays, a wash pump inlet filter, and a dedicated drain filter. This configuration traps food debris, protecting internal water pumps and keeping wash tank water cleaner for longer.

Automated Safety Monitoring

Equipped with front-mounted low chemical alarm lights and dedicated priming switches. The automated system alerts your staff when chemical levels run low, preventing unhygienic wash cycles without requiring manual inspection.

Comprehensive Suite of Standard Features

• Hands-Free Auto Drain: Integrated sump and automatic drain pump smoothly evacuate wastewater into a standard sink trap or standpipe.
• Precision Spray Arms: Robust stainless-steel wash and rinse arms equipped with precision stainless steel jets aggressively blast away grease.
• Pre-Fitted Asset Protection: Features built-in, automatic dual detergent and rinse aid dosing pumps with custom injector lines and integrated chemical level sensors.
• Heavy-Duty Construction: Finished with a premium, heavy-duty stainless-steel cabinet, frame, and structural door built for long-term commercial abuse.
• Plumbing Compliance: Built with a Water Mark-approved atmospheric vacuum breaker backflow prevention system to meet strict Australian plumbing codes.

Technical Specifications

Dimensions, Weights & Capacity

• Machine Width: 865 mm
• Machine Depth: 660 mm
• Machine Height: 845 mm
• Usable Internal Chamber Area: W 800mm x D 545mm x H 470mm
• Net Weight: 95 kg
• Packed Weight: 111 kg
• Packed Volume: 0.78 m³

Power & Electrical Requirements

• Power Type: Single-Phase electrical connection.
• Voltage & Frequency: 240V, 50Hz
• Amperage: 15 Amps (Supplied with a factory-fitted 15A plug set).
• Maximum Output: 3.75 kW
• Note: An isolating switch must be positioned within 1 metre of the unit and cannot be placed directly behind the machine cabinet.

Water & Plumbing Connections

• Hot Water Supply: 65°C inlet temperature via a 3/4” male connection (hose supplied).
• Line Pressure & Flow: 200–350 kPa pressure with a 20 litres per minute minimum flow rate.
• Waste Connection: Supplied hose fits a standard 38mm open standpipe (750mm high) or a direct connection to a sink trap.

Standard Inclusions & Included Racks

The warewasher arrives ready for an immediate turnkey setup, packed with a specialized heavy-duty transport carriage and a versatile rack package:

• 1x 500mm Dish Rack (Part: 600 70028)
• 1x 500mm Cup Rack (Part: 600 70029)
• 2x Cutlery Containers (Part: C660503)
• 1x Heavy-Duty TW Carriage (Part: 361 10030)

Warranty & Compliance

The Washtech TW is fully certified to meet rigorous Australian standards. Distributed nationally via Moffat, it features Water Mark approval and comes backed by a comprehensive 5-2-2 Warranty (5 years of coverage on the stainless-steel cabinet, 2 years on the wash pump, and 2 years covering parts and labour).

Cleaning & Maintenance Section

Maintaining the high-pressure cleaning performance of your undercounter tray washer requires a few basic cleaning habits:

1. Empty the Scrap Trays Daily: Lift out, empty, and rinse the dual stainless steel scrap trays after every heavy shift to prevent debris from clogging the pump filtration system.
2. Wipe the Internal Chamber: Use a soft damp cloth to clean internal cabinet surfaces daily. Avoid blasting high-pressure external water hoses directly at the control panel buttons.
3. Inspect the Nozzles: Periodically check the independent stainless-steel wash and rinse arms, clearing any mineral scale or food sediment from the precision jets to preserve water velocity.

Frequently Asked Questions (FAQs)

Q: What types of cookware can fit inside the Washtech TW?
A: Thanks to its specialized oversized internal chamber clearance, it easily accommodates large commercial baking trays, mixing bowls, food prep containers, dishes, and cutlery.

Q: Does this tray washer require a special three-phase power line?
A: No, the TW is designed for simple “Plug & Play” integration, running on a standard single-phase 240V 15 Amp electrical plug set that comes factory fitted.

Q: How does the machine notify staff when chemicals are running low?
A: The control panel features dedicated low chemical alarm lights backed by easy-to-use chemical priming switches, stopping unhygienic cycles before they happen.

Q: What is the benefit of the hybrid control system?
A: It combines waterproof IP65 stainless steel mechanical switches with an advanced digital timer, giving kitchen operators physical component durability alongside precise time control.

Q: Does the unit drain automatically?
A: Yes, it features a hands-free Auto Drain system equipped with a built-in automatic drain pump and outlet hose, meaning it does not rely on a low-gravity floor drain.
