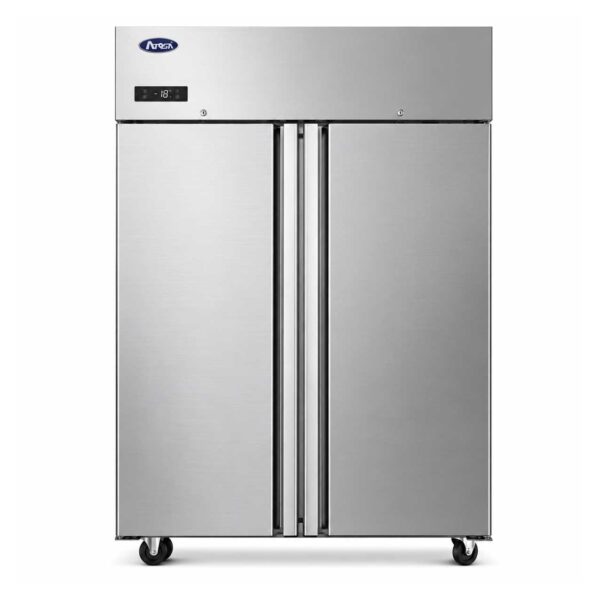

Atosa JBF80RSGR slimline double door upright fridge 860 Ltr

Atosa JBF80RSGR Slimline Double Door Fridge with High-Efficiency Cold Storage Success

The Atosa JBF80RSGR Slimline Upright Double Door Fridge is a premium vertical commercial refrigerator engineered with an advanced ventilated cooling system and a heavy-duty compressor. Explicitly designed to excel in the high-volume environment of the Australian hospitality industry, this 860-to-1090-litre capacity machine bridges the gap between reliable food-safe climate safety and space-saving back-of-house organization.

Equipped with a compact 1314mm wide footprint, the JBF80RSGR maximizes restricted floor space while offering immense cold storage capabilities. Moving away from traditional extra-wide double-door refrigerators to Atosa’s slimline, ventilated design optimizes daily kitchen layouts, maintains rapid temperature recovery after door openings, and completely prevents food spoilage over long, demanding service shifts.

True 10-Amp Plug-and-Play Versatility for High-Volume Venues

The absolute biggest operational advantage of the Atosa JBF80RSGR is its highly efficient electrical and structural layout. While industrial-grade commercial refrigeration infrastructure often requires specialized electrical data points or 15-Amp hardwired upgrades, this heavy-duty dual-door storage cabinet runs seamlessly on 220–240V power with a standard 10A plug.

Drawing a highly efficient 380 Watts at a low 2.2 Amps, this layout offers immense flexibility for Australian business owners:

• Boutique Cafés & Bulk Beverage Stations: Position the unit in tight kitchen prep areas to hold high volumes of alternative milk, cold brew kegs, and dairy stock directly beside active workspaces.
• Mobile Food Trucks & Catering Trailers: Maximize wider mobile layouts with an extra-deep vertical cabinet that expands volume capacities without overloading temporary generator limits.
• School Canteens & High-Volume Tuckshops: Effortlessly handle high-turnover fresh food ingredients and prepped meal containers without dedicating excessive physical workspace floor pans.
• Restaurants, Bars & Large Catering Venues: Keep large batches of fresh produce, prepped protein pans, and sensitive garnishes perfectly chilled right along active assembly lines for busy line cooks.

Why the Atosa JBF80RSGR is Essential for Commercial Kitchens

Expert Verdict: The JBF80RSGR is a masterclass in space-efficient bulk cold storage. By integrating a heavy-duty tropical-rated system with direct Gastronome tray compatibility, Atosa Australia has solved the two biggest issues facing double-door upright fridges: low structural durability in hot ambient lines and messy, inefficient stock rotation.

Climate Class 5 Fan-Cooling for Maximum Temperature Stability
Perishables stored in low-performance fridges fail rapidly during hot Australian summers. The JBF80RSGR is rated for Climate Class 5, performing reliably at ambient temperatures up to 40°C to 43°C. It’s down-duct ventilated fan-forced cooling system ensures uniform airflow across all shelf layers, maintaining a strict -2°C to +8°C food-safe storage zone even under extreme kitchen heat.

Stamped Gastronome Side Panels for Flawless Prep Integration
Fumbling with adjustable clips or loose rack tracking slows down busy shifts and ruins kitchen workflows. This model features a specialized stamped side panel interior design that fits full-size 2/1 GN and 1/1 GN pans directly into the walls. Staff can slide heavy preparation trays straight from the prep table into the fridge without requiring secondary containers.

Self-Closing and Stay-Open Dual Solid Door Hinge System
Every busy commercial service line requires a flexible user-handling approach. The solid stainless-steel doors feature a dual-action tension system: they automatically self-close to preserve internal temperatures during rushed movements and stay open at 90 degrees to allow stable, dual-handed tray loading during bulk stock deliveries.

Key Features & Operational Advantages

• Pre-Installed Castors & Adjustments: Mounted on heavy-duty pre-installed castors for smooth mobility during floor cleaning, complete with front brake levellers for absolute stability.
• Dual Standard Safety Door Locks: Fitted with robust, pre-installed barrel key locks at the base of the doors to protect premium stock and secure inventory overnight.
• Ultra-Durable Stainless-Steel Construction: Built with high-grade stainless steel on both the exterior and interior walls to resist rusting, denting, and corrosion.
• Digital Dixell Temperature Controller: Features an external digital control panel that provides real-time readout data and allows simple, accurate parameter adjustments.
• Magnetic Tool-Free Door Gaskets: Equipped with premium magnetic rubber gasket arrays that form a tight, reliable thermal seal and pop out quickly for sanitation checks.

Technical Specifications

• Model Name: Atosa JBF80RSGR (Slimline Upright Double Solid Door Refrigerator)
• Type: Vertical double-door ventilated storage commercial refrigerator
• Storage Capacity: 860L net / 1090L gross capacity
• Shelf Layout: Includes 8x pre-installed wire shelves with moulded side panel tracking
• External Dimensions: 1314mm W x 800mm D x 2065mm H
• Electrical Requirements: 220–240V / Single Phase / 50Hz
• Power Consumption: 380 Watts
• Current Draw: 2.2 Amps
• Plug Type: Fitted with an attached standard Australian 3-pin 10A plug
• Net Operational Weight: 155 kg
• Manufacturing Origin: Globally distributed via Simco Group / Atosa Australia

Cleaning & Maintenance Guide

Maintaining strict local council food health and sanitation compliance takes only minutes due to the smart interior elements of the JBF80RSGR:

1. Clear Out the Shelves: Slide out the 8 pre-installed wire shelves without tools for quick, deep washing in your commercial sink.
2. Wipe Down the Seamless Interior: Use a soft microfiber cloth and a mild food-safe detergent to wipe down the internal stainless-steel walls, avoiding harsh abrasives.
3. Brush the Rear Condenser Coil: Clean the condenser cooling fins every 4 months with a soft brush or vacuum to remove dust build-up and guarantee peak efficiency.

Warranty, Compliance & Safety

• Commercial Warranty: Backed by a premier 2 Year Parts & Labour Warranty, plus an additional 2 Year Parts Warranty upon completing online registration via the Simco Support Portal.
• Electrical Status Monitoring: Fully certified under Australian Electrical Safety Standards, carrying the official RCM-compliant mark.
• Food Safety Alignment: Features an easily sanitized HACCP-ready interior design with rounded inner corners to avoid grease traps and bacteria tracking.

Frequently Asked Questions

Q: What is the benefit of buying the JBF80RSGR slimline model over a standard commercial upright double-door fridge?
A: Standard double-door upright commercial fridges often require widths exceeding 1400mm or deeper profiles that block narrow kitchen aisles. The JBF80RSGR uses a highly compressed 1314mm wide layout while expanding storage depth, giving you the ability to fit dual columns of full-size Gastronome prep trays without sacrificing narrow floor pathways.

Q: How often does the automated defrost system run on this model?
A: The advanced digital controller is pre-programmed to activate a built-in auto-defrost cycle during off-peak refrigeration periods. This melts away any frost build-up on the evaporator coils automatically, meaning your staff won’t have to manually empty water collection trays or shut down the machine.

Q: Can I change or swap the doors to glass profiles on-site if my kitchen layout needs visibility?
A: No, the Atosa JBF80RSGR comes engineered with fixed solid stainless steel insulated doors to maximize cold thermal retention in high-temperature lines. If your kitchen layout demands absolute product visibility, investigate Atosa’s glass-door display variations before shipment.

Q: Will standard-sized baking sheets or catering trays fit across these dual bays?
A: Yes, the internal stamped tracking is meticulously measured to accept 2/1 GN and 1/1 GN pans across both door sections seamlessly. Standard residential trays or off-spec baking pans will require placement on top of the supplied wire shelves.

Q: Does this dual-door model require a dedicated or hardwired electrical point?
A: No, despite its large 1090L capacity, it operates cleanly on a standard 10-Amp 3-pin Australian plug. It can plug into any standard commercial kitchen wall point without the need for an electrician to wire a 15-Amp circuit line.
