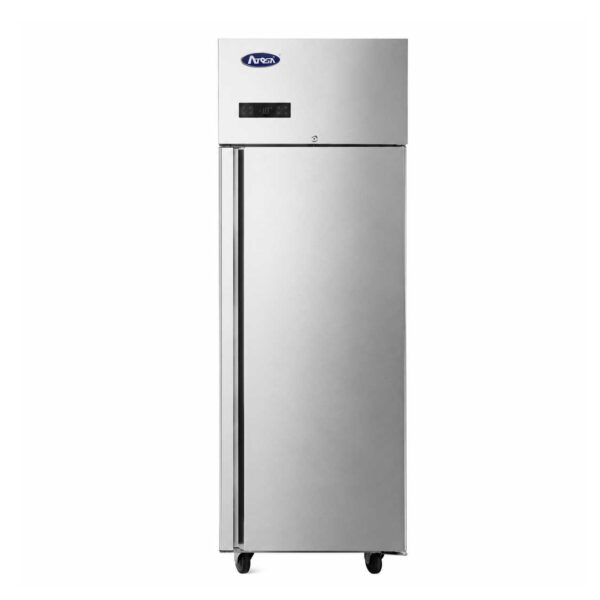

Atosa JBF40RSGR Slimline Fridge with High Efficiency Cold Storage Success
The Atosa JBF40RSGR Slimline Upright Single Door Fridge is a premium vertical commercial refrigerator engineered with an advanced ventilated cooling system and a heavy-duty compressor. Explicitly designed to excel in the high-volume environment of the Australian hospitality industry, this 430-to-488-litre capacity machine bridges the gap between reliable food safe climate safety and space-saving back-of-house organization.
Equipped with a compact 654mm wide footprint, the JBF40RSGR maximizes restricted floor space while offering immense cold storage capabilities. Moving away from traditional wide-profile refrigerators to Atosa’s slimline, ventilated design optimizes daily kitchen layouts, maintains rapid temperature recovery after door openings, and completely prevents food spoilage over long, demanding service shifts.
True 10 Amp Plug and Play Versatility for High Volume Venues
The absolute biggest operational advantage of the Atosa JBF40RSGR is its highly efficient electrical and structural layout. While industrial-grade commercial refrigeration infrastructure often requires specialized electrical data points or 15-Amp hardwired upgrades, this heavy-duty storage cabinet runs seamlessly on 220–240V power with a standard 10A plug.
Drawing a highly efficient 270 Watts at a low 1.5 Amps, this layout offers immense flexibility for Australian business owners:
- Boutique Cafés & Coffee Stations: Position the unit directly in tight prep nooks to store milk and alternative dairy right beside your espresso workspace.
- Mobile Food Trucks & Pop-Up Trailers: Maximize highly restricted mobile floor plans with a narrow vertical cabinet that will not overload temporary generator limits.
- School Canteens & Tuckshops: Effortlessly handle steady, high-turnover cold ingredients without dedicating extensive floor space or blowing local circuit limits.
- Restaurants, Bars & Catering Venues: Keep fresh produce, prepped protein, and sensitive garnishes perfectly chilled right down the line for line cooks.
Why the Atosa JBF40RSGR is Essential for Commercial Kitchens
Expert Verdict: The JBF40RSGR is a masterclass in space-efficient cold storage. By integrating a heavy-duty tropical-rated system with direct Gastronome tray compatibility, Atosa Australia has solved the two biggest issues facing compact upright fridges: low durability in hot ambient lines and messy, inefficient stock rotation.
Climate Class 5 Fan-Cooling for Maximum Temperature Stability.
Perishables stored in low-performance fridges fail rapidly during hot Australian summers. The JBF40RSGR is rated for Climate Class 5, performing reliably at ambient temperatures up to 43°C. Its ventilated fan-forced cooling system ensures uniform airflow across all shelf layers, maintaining a strict -2°C to +8°C food-safe storage zone even under extreme kitchen heat.
Stamped Gastronome Side Panels for Flawless Prep Integration.
Fumbling with adjustable clips or loose rack tracking slows down busy shifts and ruins kitchen workflows. This model features a specialized stamped side panel interior design that fits full-size 2/1 GN and 1/1 GN pans directly into the walls. Staff can slide heavy preparation trays straight from the prep table into the fridge without requiring secondary containers.
Self-Closing and Stay-Open Solid Door Hinge System.
Every busy commercial service line requires a flexible user-handling approach. The solid stainless-steel door features a dual-action tension system: it automatically self-closes to preserve internal temperatures during rushed movements and stays open at 90 degrees to allow stable, dual-handed tray loading during bulk stock deliveries.
Key Features & Operational Advantages
- Pre-Installed Castors & Adjustments: Mounted on heavy-duty pre-installed castors for smooth mobility during floor cleaning, complete with front brake levellers for absolute stability.
- Standard Safety Door Lock: Fitted with a robust, pre-installed barrel key lock at the base of the door to protect premium stock and secure inventory overnight.
- Ultra-Durable Stainless-Steel Construction: Built with high-grade stainless steel on both the exterior and interior walls to resist rusting, denting, and corrosion.
- Digital Dixell Temperature Controller: Features an external digital control panel that provides real-time readout data and allows simple, accurate parameter adjustments.
- Magnetic Tool-Free Door Gaskets: Equipped with a premium magnetic rubber gasket array that forms a tight, reliable thermal seal and pops out quickly for sanitation checks.
Technical Specifications
- Model Name: Atosa JBF40RSGR (Slimline Upright Single Solid Door Refrigerator)
- Type: Vertical single-door ventilated storage commercial refrigerator
- Storage Capacity: 430L net / 488L gross capacity
- Shelf Layout: Includes 4x pre-installed wire shelves with moulded side panel tracking
- External Dimensions: 654mm W x 800mm D x 2065mm H
- Electrical Requirements: 220–240V / Single Phase / 50Hz
- Power Consumption: 270 Watts
- Current Draw: 1.5 Amps
- Plug Type: Fitted with an attached standard Australian 3-pin 10A plug
- Net Operational Weight: 100 kg
- Manufacturing Origin: Globally distributed via Simco Group / Atosa Australia
Cleaning & Maintenance Guide
Maintaining strict local council food health and sanitation compliance takes only minutes due to the smart interior elements of the JBF40RSGR:
- Clear Out the Shelves: Slide out the pre-installed wire shelving without tools for quick, deep washing in your commercial sink.
- Wipe Down the Seamless Interior: Use a soft microfiber cloth and a mild food-safe detergent to wipe down the internal stainless-steel walls, avoiding harsh abrasives.
- Brush the Rear Condenser Coil: Clean the condenser cooling fins every 4 months with a soft brush or vacuum to remove dust build-up and guarantee peak efficiency.
Warranty, Compliance & Safety
- Commercial Warranty: Backed by a premier 2 Year Parts & Labour Warranty, plus an additional 2 Year Parts Warranty upon completing online registration via the Simco Support Portal.
- Electrical Status Monitoring: Fully certified under Australian Electrical Safety Standards, carrying the official RCM-compliant mark.
- Food Safety Alignment: Features an easily sanitized HACCP-ready interior design with rounded inner corners to avoid grease traps and bacteria tracking.
Frequently Asked Questions
Q: What is the benefit of buying the JBF40RSGR slimline model over a standard commercial upright fridge?
A: Standard upright commercial fridges often require widths exceeding 700mm to 750mm. The JBF40RSGR uses a highly compressed 654mm wide slimline layout while staying extra deep, giving you the ability to fit full-size Gastronome prep trays without sacrificing narrow floor pathways.
Q: How often do I need to clean the condenser filter on this upright unit?
A: To maintain your warranty and ensure maximum power efficiency, it is highly recommended to inspect and vacuum the condenser assembly at least once every 4 months. Kitchen spaces with high flour or oil vapor levels may require monthly cleanings.
Q: Can I change the hinging side of the door on-site if my kitchen layout shifts?
A: No, the Atosa JBF40RSGR comes from the factory with a fixed right-hand hinge layout. If your venue layout specifically demands a left-hinged setup, please consult our sales team prior to dispatching to verify alternative options.
Q: Will standard-sized baking sheets or catering trays fit on these shelves?
A: Yes, the internal stamped tracking is meticulously measured to accept 2/1 GN and 1/1 GN pans seamlessly. Standard residential trays or off-spec baking pans will require placement on top of the supplied wire shelves.
Q: Does the solid door feature an automated condensation evaporator?
A: Yes, the advanced digital system handles automated defrost cycles and manages condensation water dispersion internally, meaning your staff won’t have to manually empty water collection trays.
The Snowmaster Advantage
When you procure your Atosa equipment through Snowmaster, you unlock a premium commercial partnership that extends well beyond a basic box delivery:
- Competitive Pricing & Stock Security: Benefit from wholesale supply networks, giving your business immediate access to deep inventory reserves at industry-leading price tiers.
- Tailored Hospitality Finance Options: Access versatile commercial payment structures, asset leasing, and flexible finance pathways suited for start-ups or expanding operations.
- Rapid Nationwide Shipping Pathways: Minimize kitchen downtime with streamlined logistical tracking, moving heavy equipment swiftly from regional distribution centres directly to your venue.
Dedicated After-Sales Lifecycle Support: Connect with veteran technical support teams who interface directly with official manufacturer networks to manage parts, rapid service dispatch, and warranty registrations.
