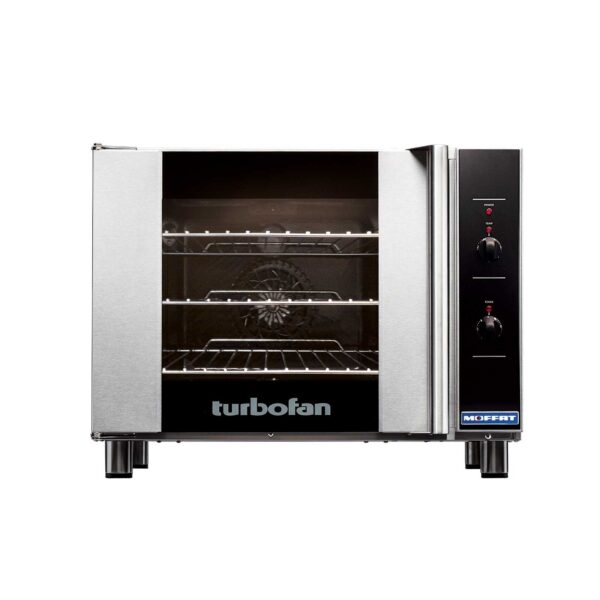

Turbofan E30M3 Manual Electric Convection Oven

Turbofan E30M3 GN 1/1 Manual Electric Convection Oven

The Turbofan E30M3 is a high-performance commercial convection oven designed for precision. It features a compact footprint ideal for busy Australian commercial kitchens. It has a 3-tray GN 1/1 pan capacity. It delivers exceptional baking, roasting, and regeneration results. This heavy-duty plug-in oven operates on a standard 10A cord set. It offers maximum cooking flexibility without requiring expensive electrical modifications.

The Turbofan E30M3 is perfect for cafes, restaurants, food trucks, and convenience stores. It combines robust stainless-steel construction with user-friendly mechanical controls. It ensures consistent heat distribution and rapid recovery times.

Why the Turbofan E30M3 is Engineered for Commercial Success

In the hospitality industry, kitchen space is premium and equipment reliability is non-negotiable. The Turbofan 30 Series E30M3 is engineered to meet these precise demands. It offers a space-saving 616mm depth that fits easily onto standard commercial benches. It can also be paired with the matching SK2731N stainless steel stand.

Unlike larger industrial ovens, this unit features a single-direction, low-velocity fan. It distributes heat evenly throughout the vitreous enamel chamber. This protects delicate baked goods from scorching or drying out. With a mechanical thermostat ranging from 50°C to 260°C, chefs can seamlessly transition between gentle warming and high-heat roasting.

Versatile Industry Use Cases

Cafes & Boutique Bakeries

Achieve perfectly golden croissants, Danishes, and sourdough loaves. The low-velocity fan ensures an even bake across all three tiers simultaneously.

Quick-Service Restaurants (QSR) & Food Trucks

The 10A plug-in design makes it incredibly mobile. It is ideal for mobile catering vans and pop-up kiosks needing fast cooking turnaround times.

Restaurants & Bistros

Use it as a dedicated station for roasting proteins, finish-baking complex dishes, or quickly regenerating pre-prepared meals during peak service hours.

Institutional Kitchens & Kiosks

The 60-minute manual timer features a loud time-up alarm. This allows kitchen staff to multi-task safely without risking overcooked food.

Key Features & Operational Advantages

• High-Capacity Baking: Holds 3 full-size Gastronome GN 1/1 pans with a generous 100mm tray spacing.
• Standard 10A Plug: Ready to plug in and use straight out of the box with standard Australian power outlets.
• Mechanical Control System: Uses a robust mechanical thermostat (50-260°C) and a manual 60-minute bake timer.
• Clear Control Panel Indicators: Features power ON, heating ON, and time-up visual indicators paired with a loud buzzer alarm.
• Safe-Touch Vented Door: Features a dual-pane glass system with 5mm thick outer glass and 5mm low-energy-loss inner glass to keep exterior surfaces cool.
• Optional Field Reversible Door: Standard left-hand hinge can be converted to right-hand hinge on-site to suit your specific kitchen layout.
• Stay-Cool Handle: Heavy-duty, full stainless steel welded handle ensures safe operator usage during hectic service.
• Vitreous Enamel Chamber: The fully welded porcelain-like interior oven chamber offers superior heat retention.
• Plug-In Oven Door Seal: Continuous, commercial-grade door seal provides an airtight closure to prevent heat loss.
• Halogen Lighting: High-intensity internal halogen oven lamp gives clear visibility of food products without opening the door.
• Adjustable Stainless-Steel Feet: Heavy-duty 50mm diameter, 76mm high anti-skid feet keep the unit stable on standard benches.
• Eco-Friendly Packaging: Unit is shipped in 100% recyclable shipping packaging to reduce waste.

Technical Specifications

Dimensions & Weights

• External Width: 810mm
• External Height: 625mm (including the 76mm adjustable stainless-steel feet)
• External Depth: 616mm
• Internal Oven Width: 565mm
• Internal Oven Height: 425mm
• Internal Oven Depth: 395mm
• Oven Internal Volume: 0.09m³
• Oven Rack Size: 540mm (W) x 370mm (D)
• Net Weight: 59kg

Power & Electrical Requirements

• Electrical Supply: 230-240V, 50Hz, 1P+N+E
• Heating Elements: 2.2kW high-efficiency elements
• Total Power Output: 2.3kW
• Current Draw: 9.5A
• Cord set: Fitted with a standard 10A Australian plug

Capacity & Configuration

• Pan Capacity: 3 x Gastronome GN 1/1 pans
• Tray Spacing: 100mm vertical clearance between racks
• Wire Racks Supplied: 3 chrome-plated wire grids

Cleaning & Maintenance

The Turbofan E30M3 is designed to minimise downtime with its smart, easy-clean features:

• Hinge-Out Inner Glass: The clever door design allows the inner glass pane to hinge outward without tools. This makes cleaning grease and residue between the panes effortless.
• Removable Components: The chrome-plated wire side racks and vitreous enamel oven fan baffle lift out completely without tools.
• Plug-In Door Seal: The continuous oven door seal can be removed easily for cleaning or replacement without tracking down technical tools.
• Stainless Steel Exterior: The top, sides, front panels, and control panel are constructed from high-grade stainless steel. This allows for easy cleaning and sanitising.

Warranty & Compliance

• Quality Assurance: Manufactured by Moffat in accordance with the globally recognised ISO9001 Quality Management Standard.
• Sanitation Certified: Fully certified to international NSF standards for food safety and commercial use.
• Eco-Friendly: Supplied in 100% recyclable shipping packaging to support sustainable commercial practices.

Frequently Asked Questions (FAQs)

Q: Does the Turbofan E30M3 require professional electrical installation?

A: No. The E30M3 comes fitted with a standard Australian 10A plug-in cord set. You can plug it directly into a standard 10-amp wall outlet without expensive electrical upgrades.

Q; Can I change the direction that the oven door opens?

A: Yes it is an optional extra, the oven is supplied standard with a left-hand hinged door. However, it features a field-reversible design, meaning it can be converted to a right-hand hinge on-site to match your workflow.

Q: What is the maximum temperature range of this convection oven?

A: The oven uses a highly accurate mechanical thermostat. It controls temperatures anywhere from 50°C up to 260°C. This range is perfect for everything from slow warming to high-heat baking.

Q: Does this oven come with a matching stand?

A: The oven can be bench-mounted on its included 76mm adjustable feet. Alternatively, you can purchase the premium Turbofan SK2731N stainless steel stand separately, which features castors and 6 built-in tray runners.

Q: What size pans fit inside the E30M3?

A: The oven chamber is specifically sized to accommodate 3 standard Gastronome GN 1/1 pans. It comes supplied with 3 chrome-plated wire oven grids.
