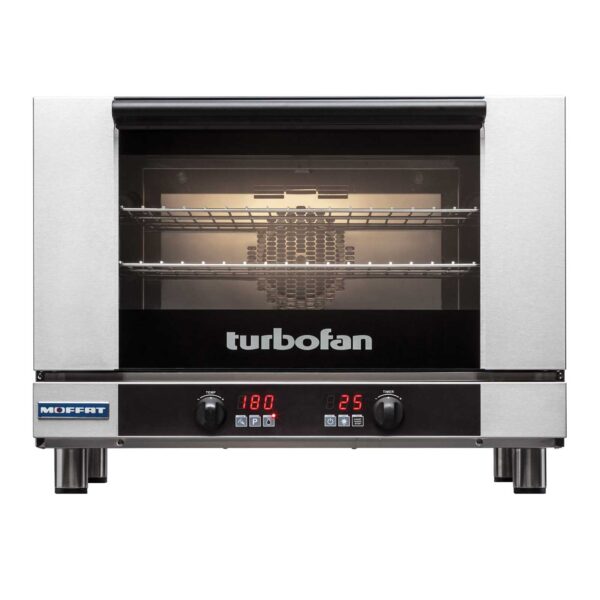

Turbofan E27D3 Full Size Digital Electric Convection Oven
The Turbofan E27D3 full size digital electric convection oven represents the next generation of automated, high-capacity baking for busy commercial kitchens. Engineered by Moffat, this heavy-duty commercial oven upgrades full-size cooking platforms with intelligent digital controls, programmable multi-stage baking, and automated moisture injection.
Optimised with a compact 810mm width to fit comfortably on standard commercial benchtops, the E27D3 maximises product consistency and kitchen throughput without demanding extensive kitchen floor space.
High-Volume Automation for Australian Commercial Kitchens
Succeeding in the competitive Australian hospitality sector requires commercial kitchen equipment that eliminates human error during intense service rushes. The Turbofan E27D3 integrates sophisticated automation, making it a critical asset for various fast-paced food service operations:
- High-Turnover Cafes & Patisseries: Program exact baking profiles for complex pastries, ensuring identical rise and colour regardless of rostered staff experience.
- Bistros, Pubs & Restaurants: Utilise multi-stage cooking programs to automatically transition from intense roasting cycles to gentle holding or slow-cooking modes.
- Institutional Food Service & Catering: The expanded 3-tray capacity combined with an 85mm vertical shelf spacing prevents heat restriction, ensuring heavy trays of roasts or lasagne cook evenly.
- Boutique Bakeries & Sandwich Shops: Leverage programmable steam injection to achieve the perfect gloss and crisp crust on artisanal sourdough and bread rolls.
Key Benefits and Operational Advantages
Advanced Digital Controls & 3-Stage Cooking
Take absolute control over your culinary output. The electronic thermostat and digital timer system store up to 20 unique programs. Each program supports up to 3 distinct cooking stages with individual time, temperature, and automatic stage-end alarms to guide staff seamlessly through complex recipes.
Automated & Manual Steam Injection Modes
Deliver professional-grade bakery results from a versatile countertop footprint. The E27D3 features a programmable moisture control system that injects precise bursts of steam into the chamber. Kitchen staff can also trigger instant humidity adjustments on demand using the dedicated manual steam injection key.
Bi-Directional Reversing Fan Technology
Achieve flawless, uniform coloration across every millimetre of your baking trays. The oven features a large, 180mm full stainless steel electronic fan that automatically reverses its rotation pattern periodically during operation. This bi-directional airflow actively redirects hot air throughout the porcelain-enamelled chamber, eliminating cold spots completely.
Heavy-Duty 4.5kW Power Output
Built to recover chamber temperatures rapidly after the door is opened. The E27D3 houses a powerful 4.5kW heating element system that ensures consistent ambient heat throughout the workspace. Operating on a single-phase electrical supply (230-240V, 19.6A), it balances professional-grade power with versatile kitchen placement.
Premium Construction & Key Features
- Dual Digital LED Displays: Large, high visibility 20mm LED screens provide instant, clear readouts of remaining time and target temperatures.
- Vitreous Enamel Oven Interior: The fully welded, one-piece porcelain enamel chamber reflects radiant heat and prevents grease or carbon buildup.
- Safe-Touch Vented Glass Door: Built with a twin-pane layout (5mm outer / 5mm low-energy-loss inner) to maximise thermal efficiency and protect staff.
- Heavy-Duty Componentry: Built with a clean stainless-steel front, side, and top panels paired with counterbalanced, wear-resistant door hardware.
- Dual Halogen Internal Lamps: Fitted with bright halogen lights to provide crystal-clear visibility across all racks without needing to open the door.
Technical Specifications
Dimensions & Weights
- External Width: 810mm
- External Height: 607mm (including the 76mm adjustable feet)
- External Depth: 762mm
- Internal Oven Width: 695mm
- Internal Oven Height: 305mm
- Internal Oven Depth: 470mm
- Oven Internal Volume: 0.10m³
- Net Weight: 61.9kg
Power, Capacity & Installation
- Electrical Requirements: 230-240V, 50Hz, 1P+N+E
- Power Output / Load: 4.5kW heating power / 19.6A current draw (4.7kW total electrical load)
- Connection Profile: Hardwired connection (no plug-in cord set supplied)
- Water Connection (Optional for Steam): ¾” BSP male cold-water inlet
- Water Supply Pressure: 20psi minimum to 80psi maximum inlet pressure
- Tray Capacity: 3 x full-size sheet pans (460mm x 660mm / 18” x 26”) or 3 x 400mm x 600mm trays
- Tray Spacing: 85mm vertical clearance between racks
- Installation Clearances: Rear: 25mm | Left-Hand Side: 25mm | Right-Hand Side: 25mm
- Heat Source Separation: Minimum 300mm distance required from external heating appliances
Fast Cleaning and Daily Maintenance
Streamline your end-of-shift kitchen clean-down routine with intelligent, tool-free service features designed to save Labor time:
- Toolless Glass Separation: The inner door glass panel features an easy hinge-out configuration, allowing staff to clean internal grease film without tools.
- Removable Side Racks & Baffle: The chrome-plated wire side racks and the stainless-steel oven fan baffle lift out completely for rapid sink washing.
- Plug-In Gaskets: The continuous oven door seal pulls away effortlessly from the frame for deep cleaning or routine replacement without tools.
- Elevated Benchtop Access: Sturdy 76mm high adjustable stainless-steel feet keep the chassis elevated, making it easy to sweep and sanitise the countertop underneath.
Compliance, Reliability, and Accessories
Every Turbofan digital appliance is designed and manufactured by Moffat in strict accordance with the internationally recognized ISO9001 Quality Management System. From initial component testing to final electrical inspection, this manufacturing protocol ensures absolute reliability and structural longevity in heavy-use commercial kitchens.
Choose Your Optional Base: SK2731N or SK2731U Stainless Steel Stands
Expand your kitchen workflow and storage footprint by pairing the oven with one of its two custom-fit, fully welded stainless steel mobile stands:
- Turbofan SK2731N Stand: Features 6 tray runners designed specifically to hold 400mm x 600mm trays and full-size GN 1/1 Gastronome pans.
- Turbofan SK2731U Stand: Equipped with 6 multi-position runners configured to hold up to 12 half-size sheet pans or 6 full-size sheet pans.
- Mobility: Both stands feature 4 swivel castors (76mm diameter) with dual-swivel and wheel locks on the front wheels for effortless kitchen mobility.
Frequently Asked Questions (FAQs)
Q: Can I plug the Turbofan E27D3 into a standard Australian 10A or 15A wall socket?
A: No, the Turbofan E27D3 features a high-performance 4.5kW heating element array that draws 19.6A. It does not come with a standard plug-in cord set and must be hardwired directly to a single-phase electrical supply by a licensed electrician.
Q: How do I adjust programs or set recipes on the digital controller?
A: The electronic control panel features separate digital displays and adjusting knobs for time and temperature functions. You can manually program up to 20 unique recipes directly through the interface keys, complete with 3-stage cooking sequences and stage-end alarms.
Q: What does 3-stage cooking mean on the E27D3 model?
A: This feature allows you to program three consecutive cooking profiles within a single cycle. For example, Stage 1 can flash heat with steam, Stage 2 can bake at a steady temperature, and Stage 3 can automatically drop the temperature down to hold or slow-cook your products.
Q: What water connection is required for the steam injection mode?
A: To utilize the automated or manual steam injection features, the oven must be plumbed into a cold-water line via the rear ¾” BSP male connection. The water supply must maintain an inlet pressure between a minimum of 20psi and a maximum of 80psi.
Q: Is it possible to stack two E27D3 units to double my kitchen capacity?
A: Yes, using an official Moffat double stacking kit, you can stack two E27D3 ovens on top of each other. This configuration allows you to double your full-size sheet pan output while occupying the exact same floor footprint as a single unit.
