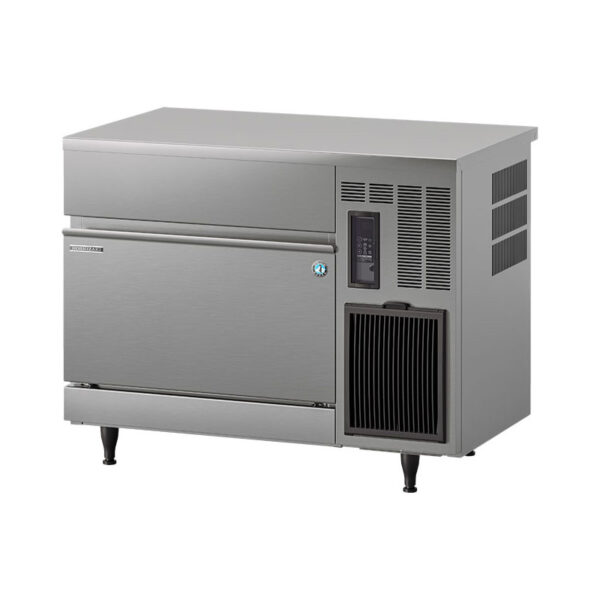

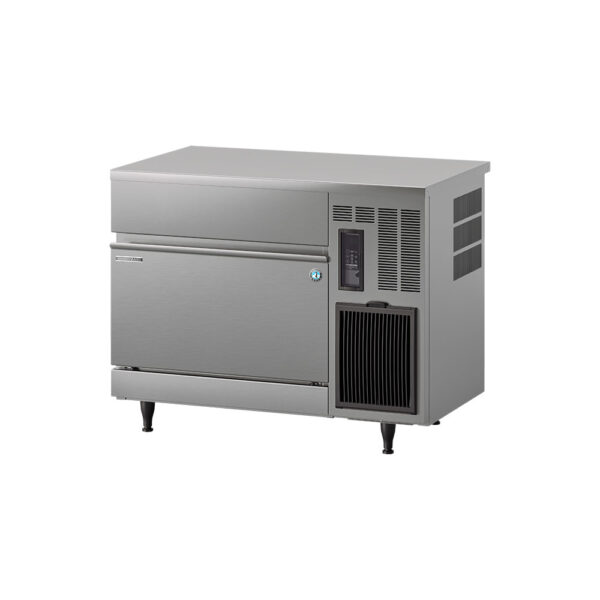

Hoshizaki IM-130CPE-23 Self-Contained Cube Ice Machine
The Hoshizaki IM-130CPE-23 brings heavy-duty, self-contained ice cubing power straight beneath your service counters, specifically configured for rapid-turnover commercial spaces. Purpose-built to navigate intense hospitality rushes, this high-yield ice maker delivers a daily output capacity of up to 99kg of flawless ice per 24 hours.
Engineered to support heavy drink volume without taking up excessive real estate, the IM-130CPE-23 fits smoothly into large bars, busy night venues, hotels, and processing areas. Featuring a substantial integrated 38kg storage bin, this commercial workhorse provides high-volume kitchens and beverage centres with a consistent, crystal-clear ice supply that meets rigid venue demands round-the-clock.
Why the Hoshizaki IM-130CPE-23 is the Ultimate High-Volume Bar Solution
For bustling hospitality venues, balancing peak operational volume with eco-efficiency and strict food safety compliance is essential to daily profitability. The Hoshizaki IM-130CPE-23 satisfies these rigorous criteria by using an advanced closed cell water circuit paired with a smart, variable-speed magnetic DC pump motor. By sealing the water supply during the freezing phase and running on R290 natural refrigerant, it limits resource consumption while keeping the active harvest protected from ambient dust, yeast, and grease.
System tracking is entirely streamlined via a forward-facing user interface. Onboard smart control boards adjust water flow dynamically through each cycle to avoid cloudy ice, while automated maintenance alerts keep you informed when the condenser filter or water paths need cleaning. To simplify daily closing checklists for floor staff, the unit includes an automated self-cleaning routine with wash auto-restart, maintaining exceptional cleanliness through every shift.
Versatile Hospitality Industry Use Cases
- High-Volume Cocktail Bars & Nightclubs: Rapidly replenishes ice wells with perfectly clear cubes during hectic Friday and Saturday service windows.
- Bistros, Clubs & Large RSLs: Easily slots into under-counter service lines to give bartenders or waitstaff an independent, heavy-duty ice access point.
- Juice Bars & High-Traffic Cafés: The standard 23mm cube blends beautifully and looks premium in cold brews, iced lattes, and premium mocktails.
- Hotel Service Floors & VIP Lounges: Runs quietly and efficiently while providing independent ice provisions for room service or catering stations.
Comprehensive List of Standard Features
- Closed Cell Freezing Framework: Seals out airborne impurities during ice formation to ensure total sanitisation.
- Smart Variable Pump System: Automatically regulates flow parameters through every production phase to eradicate malformed cubes.
- 23mm Standard Cube Formulation: Yields hard, exceptionally slow-melting, and beautifully square ice cubes for pristine drink presentation.
- Eco-Conscious R290 Refrigerant: Employs natural, low-GWP refrigerant to lower your venue’s direct environmental footprint.
- Built-In Maintenance Reminders: Visual notifications alert staff when the water circuit or the air filter requires regular cleaning.
- Dedicated Service Touch Buttons: Front-facing standby and wash buttons streamline daily maintenance or pause operations instantly.
- Tropical Cooling Configuration: Engineered to sustain maximum harvest outputs in commercial kitchen environments up to 40°C.
- Brushed Stainless Steel Exterior: Constructed with a heavy-duty AISI 441 stainless shell and an AISI 430 interior to withstand harsh workplace wear.
- Removable Tank & Pump Assembly: The internal water reservoir and pump can be extracted by hand for effortless out-of-machine sanitising.
Technical Specifications
Dimensions & Capacity
- External Width: 1004mm
- External Depth: 600mm
- External Height: 800mm
- Ice Cube Profile: 23mm Cube Sizing
- Maximum Daily Rating: Approx. 99kg per 24 hours (at 10°C Air / 10°C Water)
- Standard Daily Rating: Approx. 92kg per 24 hours (at 21°C Air / 15°C Water)
- High Ambient Daily Rating: Approx. 80kg per 24 hours (at 32°C Air / 21°C Water)
- Storage Vault Capacity: Integrated 38kg bin (System automatically idles when loose ice hits approx. 23kg)
- Standard Included Accessories: 1 x Commercial installation kit, 1 x Food-grade ice scoop
Power, Water & Plumbing
- Electrical Connection: 1 PHASE 220-240V 50Hz with a factory 10 AMP Plug
- Power Draw Rating: 585W Ultra-efficient calibration
- Amperage Parameters: 4.2A Running Amperage (Starting current spike: 19A)
- Panel Overload Safeguard: 5A Electrical circuit breaker requirement
- Water Inlet Port: 3/4” gas male plumbing line connection
- Water Supply Pressure: 0.07–0.8 MPa (0.7–8 bar / 10–116 psi)
- Drainage Requirement: Heavy-duty gravity drain line
- Refrigerant Configuration: Eco-friendly R290 / 125g charge
- Net Machine Weight: 80 Kg (Gross packed shipping weight: 91kg)
Cleaning & Preventative Maintenance
The Hoshizaki IM-130CPE-23 is strategically structured to minimize structural grease build-up and avoid costly mechanical downtime:
- Automated Cycle Flushing: Automatically initiates a fresh-water flush after each batch to rinse minerals away from the freezing cells.
- Slide-In Mesh Condenser Filter: The forward ventilation air filter pulls out instantly for quick sink washing, keeping the compressor running cool.
- Hygienic Polyurethane Vault Interior: Injected with premium foamed insulation and shaped with smooth, rounded corners to prevent organic grime.
- Toolless Water Component Removal: The freshwater tank and DC pump detach smoothly without tools, letting you deep-clean the parts easily.
Warranty, Standards & Compliance
- Premium 3-Year Manufacturer Warranty: Covered by a comprehensive 36-month parts and labour warranty backed directly by Hoshizaki Australia.
- Extended Internal Component Protection: Delivers extended structural coverage on major internal refrigeration assemblies, protecting your investment.
- HACCP Certified Construction: The sealed, closed cell ice-making configuration eliminates open air exposure, ensuring you breeze through health audits.
- Water Mark National Approval: Stamped and verified under Australian Water Mark regulations for safe, legal plumbing grid connection.
Frequently Asked Questions (FAQs)
Q: Why does the IM-130CPE-23 consume 585W of power while the -28 version uses 570W?
A: Because this model is configured to form standard 23mm cubes rather than 28mm cubes. Freezing smaller cubes requires an evaporator grid with a higher density of pocket cells, which cycles the compressor under slightly varied thermal loads—resulting in a modest 15-watt variance.
Q: Does this model require a gravity drain line or does it feature an integrated drain pump?
A: The IM-130CPE-23 uses a heavy-duty gravity drainage system. Wastewater must flow downward from the machine base, meaning it must sit elevated above your building’s floor waste trap unless you pair it with an external condensate pump.
Q: How does the improved water tank profile lower daily utility expenses?
A: Traditional high-capacity ice makers pull excess water into the reservoir and dump the surplus down the drain during the harvest phase. This updated design measures exact volumetric parameters for each cycle, dropping standard daily water consumption to 0.23m³.
Q: Can I use this unit safely alongside other kitchen equipment that gives off heavy heat?
A: Yes, the machine features a tropicalised air-cooled condenser rated for ambient temperatures up to 40°C. However, maintaining the minimum recommended side and rear ventilation clearances is highly recommended to protect your warranty and lower your power bills.
Q: Can the front panel display lock out unauthorised users from changing the cube dimple size?
A: Yes. The adjustable control panel features secure programming pathways. This ensures only managers or authorised service technicians can alter internal freezing settings or calibrate the target dimple size of the 23mm cubes.
