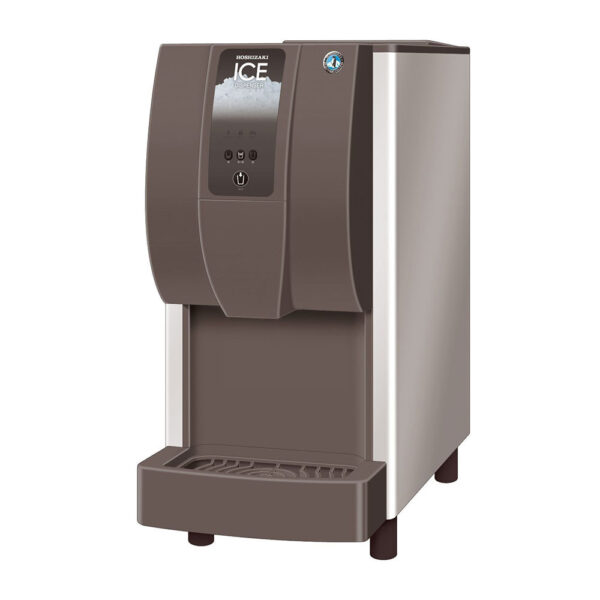

Hoshizaki DCM-120KE-P-HC Ice & Water Dispenser 125Kg/24Hrs

Hoshizaki DCM-120KE-P-HC Ice & Water Dispenser

The Hoshizaki DCM-120KE-P-HC Ice & Water Dispenser is a high-capacity, self-contained countertop powerhouse engineered to dispense up to 105kg to 125kg of premium Cubelet ice and refreshing chilled water per 24 hours. Developed precisely for ultra-high-traffic settings prioritizing absolute food safety, rapid delivery, and space optimization, this push-button commercial system integrates heavy-duty ice production, a secure 4kg storage reservoir, and intuitive portion control into a single streamlined footprint. Driven by sustainable R290 hydrocarbon refrigerant, it represents the benchmark for energy-efficient, eco-friendly ice dispensing in demanding Australian commercial environments.

Hospitality and Commercial Industry Use Cases

This robust dispensing unit adapts seamlessly to front-of-house service rows or back-of-house hydration stations, making it an indispensable asset across several major industries:

• Large Healthcare Facilities & Hospitals: Supplies consistent, highly chewable nugget ice perfect for clinical patient hydration while an enclosed design keeps ambient airborne contaminants completely away from the water supply.
• High-Volume Mining & Construction Lunchrooms: Satisfies the intense hydration needs of large shift changes, filling heavy work thermoses quickly with combined ice and chilled water.
• Busy Institutional Cafeterias & Universities: Handles peak self-service rushes with ease, accelerating line movement in busy dining halls through automatic, user-activated push buttons.
• Major Hotels & Supermarkets: Provides continuous, unsupervised access to premium ice and chilled water mixtures for guest corridors or produce departments.

Operational Benefits and Advantages

• Strict Contamination Control: The advanced hygienic layout keeps outside air, dust, and bare hands from ever contacting the interior storage cell, exceeding strict commercial health regulations.
• Dynamic 3-in-1 Output: Gives patrons the flexibility to select between Cubelet ice only, water only, or a combined ice and water flash at the single touch of a button.
• Smart Waste Prevention: Outfitted with adjustable, integrated portion management that controls the dispense runtime, cutting down accidental tray overflows and saving utility costs.
• Natural Hydrocarbon Refrigeration: Employs eco-safe R290 refrigerant to slash energy consumption, lower operating temperatures, and minimise greenhouse emissions.
• Heavy-Duty Continuous Auger: Employs a mechanical continuous-run auger that avoids ice bridging or internal clumping, providing an uninterrupted flow of micro-structured ice cubes.

Key Features

• Responsive Electronic Controls: Clean, push-button activation makes dispensing simple and accessible for both staff members and members of the public.
• High-Yield Nugget Ice: Produces premium, compressed flake nugget ice that chills drinks rapidly while retaining beverage flavours beautifully.
• Premium Tri-Material Chassis: Combines heavy-gauge stainless steel side and rear walls with a rugged, high-impact ABS plastic front, top, and drain pan assembly for swift sanitisation.
• Plug & Play Implementation: Engineered for rapid workspace deployment with standard utility connections to keep commissioning down-time to an absolute minimum.
• Slimline Benchtop Design: Keeps a highly space-conscious 350mm width, preserving vital bench space for neighbouring commercial appliances.

Technical Specifications

• Ice Production Capacity (per 24 Hours):
  • Approx. 125kg at 10°C Ambient Air / 10°C Water Inlet
  • Approx. 105kg at 21°C Ambient Air / 15°C Water Inlet (Standard rating)
  • Approx. 85kg at 32°C Ambient Air / 21°C Water Inlet (High ambient conditions)
• Ice Storage Capacity: 4kg built-in insulated vault
• Ice Style: Premium Cubelet / Nugget
• Condenser Cooling: Air Cooled
• Refrigerant Type: Eco-Friendly R290 Hydrocarbon
• Power Requirement: 1 Phase, 220–240V, 50Hz supplied with a standard 10 Amp plug

Dimensions, Power, and Installation Requirements

• Width: 350 mm
• Depth: 585 mm
• Height: 815 mm
• Net Weight: 56 kg
• Packed Weight: 65 kg
• Power Draw: 450 Watts (0.45 kW)
• Operating Ambient Temperature Range: 5°C to 40°C
• Water Pressure Limits: 0.05 MPa to 0.78 MPa (0.5 to 8 bar)

Warranty and Compliance

• Standard Australian Protection: Backed by Hoshizaki Australia’s premier commercial warranty framework, delivering 3 years parts and labour across the whole machine, alongside 5 years parts-only coverage on the compressor.
• Extended Manufacturing Warranty: Eligible for an extra 6-month warranty extension by registering the equipment online via the official Hoshizaki portal within 4 weeks of the invoice date.
• Compliance Certification: GEMS approved (Registration Number: AIM0026) for strict energy benchmarks and certified for use across commercial foodservice environments.

Cleaning and Maintenance Section

Protecting your high-capacity dispenser preserves mechanical efficiency and beverage purity:

1. Regular Condenser Filter Checks: Slide out the air filter monthly to rinse away kitchen grease and environmental dust, preventing high-amperage heat lockups.
2. Bi-Annual Flush Cycle: Run a food-safe descaling treatment through the main water lines twice a year to clear mineral crusting from the auger drive.
3. Daily Drain Pan Cleaning: Wipe down the ABS front drain pan assembly and check the waste-water flow path weekly to prevent blockages from stray items.
4. Water Filtration System: Always combine the machine with an approved filtration kit (such as the HLF10G Water Filter Kit & Gauge) to catch fine sediment and preserve the inner stainless-steel mechanics from costly hard-water pitting.

Why This Product is Ideal for Commercial Kitchens

In modern high-traffic commercial environments, standard ice makers with flip-up lids fail to maintain absolute hygiene and slow down workflows during busy periods. The Hoshizaki DCM-120KE-P-HC overcomes these challenges by replacing old-fashioned ice scoops with an automated, sealed countertop solution. It provides over double the ice storage and output capacity of entry-level models within the exact same 350mm width, maximizing valuable horizontal bench space. Because its internal auger system converts nearly 100% of the incoming water supply directly into ice, your facility will cut down on water waste compared to typical ice cube machines that continuously dump water during their harvest cycle.

Frequently Asked Questions (FAQs)

Q1: What is the main storage advantage of upgrading to the DCM-120 over entry-level dispensers?
A1: The DCM-120 features an expanded 4kg built-in insulated reservoir, more than doubling the storage volume of smaller models to ensure your facility comfortably absorbs heavy lunch and dinner rushes.

Q2: What factory plumbing accessories are available to maintain water quality?
A2: Hoshizaki lists several specific parts for this model, including the HLF10G Water Filter Kit & Gauge, the HLF10 Low-capacity system, and the HLFC100 or HLFC111 filtration options to keep the unit clear of mineral debris.

Q3: Can the electronic portion control mechanism be completely turned off if needed?
A3: Yes. While the built-in portion control is designed to limit overfill and manage ice waste, it can be adjusted or set to continuous flow to match the specific self-service requirements of your venue.

Q4: How does the packed shipping weight compare to the standalone net weight?
A4: The machine has a net weight of 56kg for countertop installation, while its packed shipping weight is 65kg, which includes secure commercial crating to prevent transit damage.

Q5: Is this high-yield ice dispenser compatible with standard commercial building water lines?
A5: Yes, it is built to operate safely across a wide dynamic water supply pressure range of 0.05-0.78MPa (0.5 to 8 bar), making it perfectly suited for standard Australian municipal water infrastructures.
