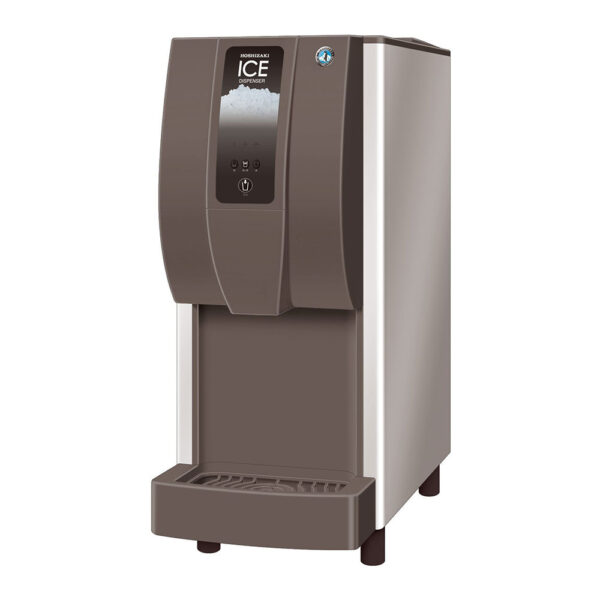

Hoshizaki DCM-60KE-P-HC Ice & Water Dispenser 50Kg/24Hrs

Hoshizaki DCM-60KE-P-HC Ice & Water Dispenser

The Hoshizaki DCM-60KE-P-HC Ice & Water Dispenser is a premier self-contained commercial countertop solution engineered to deliver up to 50kg to 60kg of premium Cubelet ice and chilled water per 24 hours. Designed specifically for high-traffic environments where strict food safety, rapid delivery, and space optimization are paramount, this push-button unit combines ice making, a secure 1.9kg storage bin, and precise portion control into a sleek, compact footprint. Utilising eco-friendly R290 hydrocarbon refrigerant, it represents the pinnacle of sustainable performance for modern Australian food service and corporate settings.

Hospitality and Commercial Industry Use Cases

This versatile unit bridges the gap between back-of-house reliability and front-of-house aesthetics, proving indispensable across several targeted commercial environments:

• Healthcare Facilities & Aged Care: Delivers easily chewable, soft Cubelet ice ideal for patient hydration while eliminating manual scooping to prevent cross-contamination.
• Corporate Offices & Staff Rooms: Offers employee breakout spaces a premium, low-maintenance alternative to manual ice trays, dispensing fresh ice and chilled water instantly at the touch of a button.
• Hotels, Motels, and Guest Lounges: Integrates flawlessly into self-service corridors or breakfast bars, giving patrons unsupervised, hygienic access to ice-water combinations.
• Cafés, Quick-Service Restaurants & Bars: Enhances workflow speed during peak rushes, serving as an efficient station for rapid soft drink, iced coffee, or smoothie preparation.

Operational Benefits and Advantages

• Maximum Hygiene Assurance: The fully enclosed system ensures that outside ambient air, dust, and hands never meet the stored ice reservoir, satisfying strict food safety standards.
• Versatile 3-in-1 Dispensing: Users can select between Cubelet ice only, water only, or a combined ice and water feed, eliminating the need to install separate water chillers and standalone ice makers.
• Portion Control Waste Reduction: Features intuitive, adjustable dispensing times to limit overfill and accidental spills, optimizing ice consumption and dropping operational overheads.
• Advanced Hydrocarbon Efficiency: Powered by natural R290 refrigerant, the dispenser significantly cuts down energy consumption and matches global green building standards.
• Anti-Clogging Auger Design: Built with a resilient industrial auger that feeds ice smoothly without creating the “bridging” or blockages common in traditional dispensers.

Key Features

• Push-Button Interface: Simple, ultra-responsive electronic controls that ensure quick operation for customers or staff.
• Premium Cubelet Ice Production: Dispenses high-quality, micro-structured nugget ice that chills drinks rapidly and absorbs liquid flavours perfectly.
• Stainless Steel & ABS Exterior: The chassis blends robust stainless-steel side and rear panels with a sleek, impact-resistant ABS front moulding for effortless wipe-down cleaning.
• Heavy-Duty Drainage System: Outfitted with an extra-large 25mm drainpipe to manage drip tray runoff quickly and mitigate plumbing backups.
• Compact Footprint: At just 350mm wide, it leaves ample bench space available for other vital catering appliances.

Technical Specifications

• Ice Production Capacity (per 24 Hours):
  • Approx. 60kg at 10°C Air / 10°C Water
  • Approx. 50kg at 21°C Air / 15°C Water (Standard rating)
  • Approx. 38kg at 32°C Air / 21°C Water (High ambient conditions)
• Ice Storage Capacity: 1.9kg built-in reservoir
• Ice Type: Cubelet / Nugget
• Cooling System: Air Cooled
• Refrigerant Type: R290 Hydrocarbon
• Water Consumption: Equal to ice production volume due to the direct auger mechanics.

Dimensions, Power, and Installation Requirements

• Width: 350 mm
• Depth: 585 mm
• Height: 695 mm
• Net Weight: 46 kg
• Packed Weight: 55 kg
• Power Supply: 1 Phase, 220–240V, 50Hz with a pre-fitted standard 10 Amp plug
• Electrical Consumption: 265 Watts (0.265 kW)
• Operating Ambient Temperature Range: 5°C to 40°C
• Water Supply Pressure Limits: 0.05 MPa to 0.78 MPa (0.5 to 8 bar)

Warranty and Compliance

• Standard Australian Warranty: Supported by Hoshizaki Australia’s robust national warranty coverage, offering 3 years parts and labour on the complete unit, alongside a 5-year parts-only warranty on the compressor.
• Extended Protection: Eligible for a free 6-month warranty extension when registered online via the Hoshizaki portal within 4 weeks of your purchase date.
• Compliance Certification: GEMS approved (Registration Number: AIM0024) for energy efficiency performance and built to strict commercial electrical safety benchmarks.

Cleaning and Maintenance Section

Maintaining your Hoshizaki dispenser ensures longevity and safeguards water purity:

1. Periodic Condenser Cleaning: The air-cooled condenser filter collects dust over time. Slide the filter out monthly and wash it with warm, soapy water to maintain optimal airflow and prevent high-amperage strains.
2. Sanitise the Water System: Every six months, run a food-grade scale remover and sanitising solution through the internal water lines to dissolve mineral build-up and prevent bacterial films.
3. Drip Tray Maintenance: Clean the removable front drip tray weekly. Ensure the drain path is free from coffee or tea splashes that might induce clogging.
4. Water Filtration is Critical: Hoshizaki strongly instructs installing a compatible, high-quality water filter (such as the HLF10 low-capacity filter or HLF10G kit) to eliminate sediment and scaling, protecting the delicate auger assembly from non-warrantable structural damage.

Why This Product is Ideal for Commercial Kitchens

In a busy commercial kitchen or high-volume service station, efficiency and hygiene cannot be compromised. The Hoshizaki DCM-60KE-P-HC avoids the standard pitfalls of open-top under bench ice machines—such as staff introducing cross-contamination via dirty ice scoops. It’s incredibly narrow 350mm width lets it sit neatly on high-value beverage benches or service line countertops without disrupting workflow. Because water consumption directly mirrors ice output due to the auger system, kitchens experience lower water bills compared to traditional Cubes that constantly flush water down the drain during the harvest cycle.

Frequently Asked Questions (FAQs)

Q1: What is the main design difference between this model and the larger DCM-120 series?
A1: While both share a matching 350mm wide footprint, this compact model stands at a shorter height of 695mm with a 1.9kg internal storage bin, making it ideal for low-clearance shelving or areas with moderate daily volume needs.

Q2: Can this unit be hard-wired into our facility’s electrical system?
A2: The unit comes ready out of the box with a standard 10 Amp plug, allowing for straightforward plug-and-play installation into standard Australian wall sockets without requiring specialised electrical work.

Q3: How does the closed system safeguard the unit from airborne contamination?
A3: Traditional ice bins are vulnerable to airborne particles and bacteria whenever the lid is opened. This unit uses an entirely enclosed storage vault that dispenses ice directly into cups via a push button, eliminating exposure to room air.

Q4: Does the DCM-60KE-P-HC require any additional clearances during installation?
A4: Yes, because it is an air-cooled ice machine, it needs sufficient room around the panels to draw in cool air and vent heat. Refer to the instruction manual for exact spacing guidelines before fixing it to a bench.

Q5: What replacement filter cartridges can I purchase for this dispenser?
A5: This model can be paired with the Hoshizaki HLFC100 320mm replacement cartridge or the HLFC111 water filter to ensure your incoming supply stays free from harmful debris and scaling.
