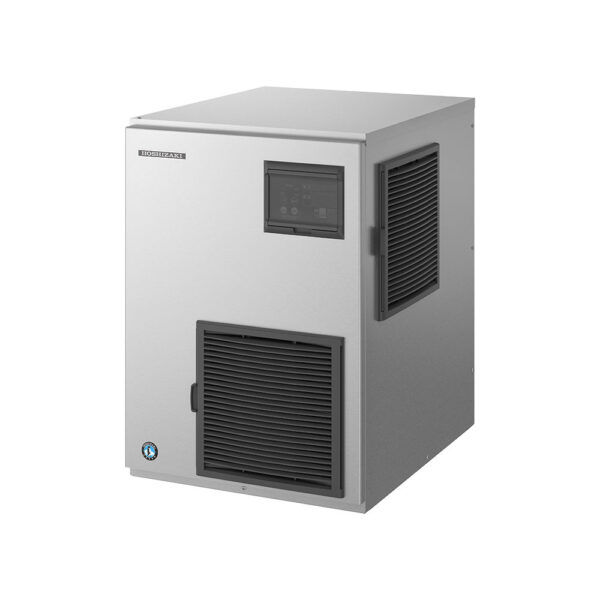

Hoshizaki FM-480AKE-HCN-SB Nugget Ice Maker Head Only 330Kg/Day

Hoshizaki FM-480AKE-HCN-SB Nugget Ice Maker

The Hoshizaki FM-480AKE-HCN-SB Nugget Ice Maker is a commercial modular ice machine engineered for heavy-duty Australian hospitality, high-volume cocktail lounges, and premier seafood merchandising. Manufacturing Hoshizaki’s signature dry, densely compacted nugget ice formats, this high-output head unit combines structural mechanical resilience with industry-leading thermal efficiency. Built specifically to deliver consistent yields under intense ambient workloads, it stands as the premier choice for large-scale operations looking to scale their ice reserves while managing baseline utility costs.

Premium Modular Nugget Ice for Large-Scale Cocktail Venues and Seafood Displays

The modern Australian hospitality and fresh food retail sectors rely heavily on speed, aesthetic presentation, and precise temperature regulation. The Hoshizaki FM-480AKE-HCN-SB provides an exceptional solution for high-volume bars, busy clubs, commercial catering operations, and gourmet fish markets across Australia. Standard block ice can be difficult to manage, while loose flake ice can melt too quickly in open air. Hoshizaki’s chewable compacted nugget ice is compressed during production to remove excess moisture, resulting in a slower, highly uniform melt rate that chills drinks rapidly without causing immediate dilution. It is the perfect choice for signature tiki cocktails, layered mixed drinks, smoothies, and carbonated beverages.

Beyond mixology, this dense nugget format serves as a premium alternative to traditional flake ice for cold fresh food displays, creating a striking, clear-ice effect. The small, compressed nuggets easily Mold into shape around delicate produce, offering an elegant bed that beautifully highlights premium oysters, prawns, and fresh catches without freezing or bruising the product. As a modular head unit, it installs cleanly on top of separate storage bins, allowing venues to customize their total ice reserve capacity to match their precise peak trading requirements.

Operational Advantages & Efficiency Benefits

Investing in the Hoshizaki FM modular range means anchoring your workflow with scalable performance, long-term durability, and smart resource management.

• Optimised Environmental Sustainability: Utilizing eco-friendly R290 hydrocarbon natural refrigerant, this machine complies fully with modern green building and refrigeration codes, minimizing carbon footprints while significantly driving down baseline power consumption.
• Intelligent Utility Management: Fitted with an energy-efficient variable-speed magnetic DC pump motor, the unit actively adjusts water flow through every stage of the freeze cycle. A built-in stand-by function halts energy and water waste during closed hours.
• Flawless Hygiene via Automatic Rinsing: Engineered with Hoshizaki’s pioneering automated water circuit rinse sequence. This system flushes out residual minerals and sediment between production runs, defending internal lines from calcification.
• Sealed Structural Integrity: The combination of a completely closed water circuit and premium foamed insulation shields the freezing zone from ambient kitchen dust and grease vapours, ensuring uncompromised food safety.

Key Engineering Features

• Modular Stackable Architecture: Compact, space-saving engineering allows growing venues to stack units vertically, maximizing total ice output without surrendering valuable kitchen or back-bar floor space.
• Premium Multi-Material Build: Features robust stainless-steel side and rear panels paired with a durable ABS-moulded front, top, and drain pan to provide high impact resistance and long-term protection against corrosion.
• Automated Preventive Alerts: Built-in dashboard indicators flash proactive water circuit and condenser cleaning notifications, allowing staff to handle routine maintenance before operational faults develop.
• Tool-Free Component Upkeep: The internal water tank and magnetic DC pump assembly are designed to slide out effortlessly, streamlining technical servicing and reducing routine service call times.
• Food-Grade Internal Components: Core internal processing elements are fabricated from high-grade AISI 430 stainless steel to guarantee maximum sanitation and clean ice delivery.

Technical Specifications

• Nominal Daily Production: Rated up to 380kg per 24 hours at optimal 10°C Air / 10°C Water.
• Realistic Kitchen Scaling: Produces approx. 330kg per 24 hours at standard 21°C Air / 15°C Water; outputs approx. 270kg per 24 hours at peak 32°C Air / 21°C Water.
• Ice Format Size: Hard, tightly compressed Nugget Ice style.

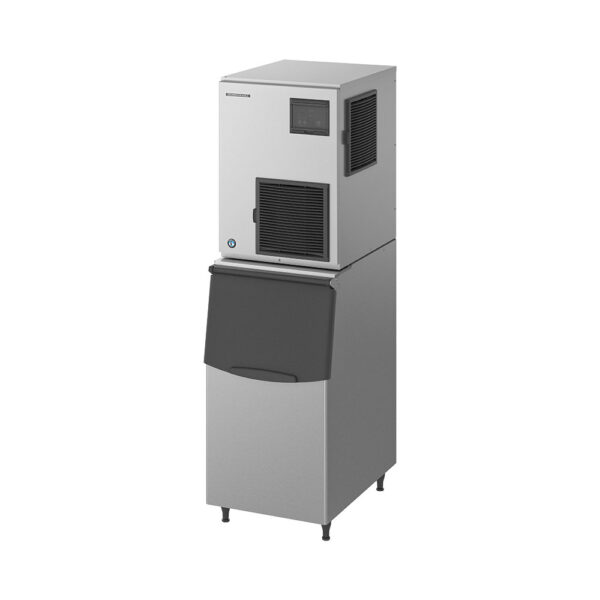

• Compatible Storage Bins & Top Kits: Integrates directly with B-301SA (no top kit required), B-501SA (requires 8D kit), or B-801SA (requires 8D + 18D kits). Supports a double-stack configuration on the B-801SA using a 4DM kit.
• Electrical Draw: 1 Phase, 220–240V, 50Hz configuration featuring a pre-fitted 10 Amp Australian Plug.
• Power Consumption: Ultra-efficient 1170W operational draw.
• Exterior Shell Construction: Stainless steel (sides, rear) combined with durable ABS moulding (front, top, drain pan).
• Standard Accessories Included: Complete professional installation kit. (Scoop not included with this head unit).

Dimensions & Operational Requirements

• Product Width: 560 mm
• Product Depth: 700 mm
• Product Height: 780 mm
• Net Product Weight: 92 kg
• Packed Weight: 99 kg
• Ambient Operating Temperature Range: 5°C to 40°C
• Incoming Water Supply Temperature: 5°C to 35°C
• Water Supply Pressure Range: 0.05 to 0.8 MPa (0.5 – 8 bar)
• Voltage Range: Rated Voltage ±6%

Warranty & Regulatory Compliance

The Hoshizaki FM-480AKE-HCN-SB is fully GEMS Approved (GEMS Registration Number: AIM0046) for verified energy efficiency parameters across all Australian states and territories. It is backed by a premium factory warranty program:

• 3 Years parts and labour warranty spanning the complete modular nugget ice maker head unit.
• 5 Years parts-only warranty protecting the advanced commercial compressor and air-cooled condenser coil assembly.

Why This Machine Excels in Busy Commercial Kitchens

Australian commercial spaces operate under extreme climate duress, characterized by soaring kitchen radiant heat, airborne grease, and highly restricted footprints. Sizing a high-capacity ice unit based on mild winter statistics inevitably results in severe mid-summer shortfalls. Industry experts recognize that the 32°C ambient baseline is the only reliable metric that matters for venue planning. The Hoshizaki FM-480AKE-HCN-SB excels here, pumping out an impressive 270kg of solid mixology nuggets daily even when ambient kitchen temperatures surge to 32°C.

Its streamlined 560mm width allows it to be installed easily over narrow storage bins, saving critical horizontal floor space in dense back-of-house layouts. Additionally, the smart, automated wash-auto-restart technology ensures that if power or water pressure experiences a minor fluctuation during a chaotic service window, the machine safely clears the lines and resumes production automatically without requiring manual staff intervention.

Proactive Cleaning & Maintenance Routine

1. Automated Maintenance Cycles: Leverage the built-in automated cleaning with wash auto-restart to routinely flush internal scale and keep the internal hydraulic plumbing immaculate.
2. Accessible Condenser Care: Clean the air condenser coils at regular intervals when the dashboard flashes a notification to maintain optimal airflow and prevent utility bills from spiking.
3. ABS Moulding & Exterior Wipe: Clean down the ABS front panels and drain pan weekly with a mild, food-safe sanitizer to prevent sediment buildup.
4. Water Treatment Requirement: This unit requires a dedicated water filtration system (such as the compatible HLF10G Water Filter Kit & Gauge, sold separately). Proper filtration removes heavy chlorines and sediment, protecting the inner ice-making mechanism.

Frequently Asked Questions

Q1: What are the primary structural differences between this 330kg model and smaller modular nugget machines?
A: While sharing the same 560mm wide space-saving chassis footprint as the 210kg model, the FM-480AKE-HCN-SB utilizes a heavier duty refrigeration system and an expanded charge of 145g of R290 refrigerant. This hardware upgrade increases peak production capacity up to 380kg, making it suited for operations with massive daily ice demands.

Q2: Does this high-capacity head unit come with an integrated ice scoop?
A: No, because this is a high-volume modular head unit meant to be paired with a separate storage bin, the ice scoop is not included with the machine itself. An ergonomic ice scoop is normally supplied with the purchase of your chosen Hoshizaki storage bin (such as the B-501SA or B-801SA).

Q3: How much water does this unit use over a 24-hour cycle under typical Australian conditions?
A: Water consumption aligns directly with ice output. Under standard operating metrics (21°C Air / 15°C Water), the unit utilizes 0.330 cubic meters (330 litres) of water per 24 hours to create an equal weight of premium nugget ice.

Q4: Is an optional scoop holder kit available for this specific modular configuration?
A: Yes. To promote maximum hygiene and food safety in busy back-of-house zones, an optional external scoop holder kit can be added to your storage bin setup. This keeps the scoop handle clean and isolated from direct contact with the internal ice reserve.

Q5: Can I run this machine using a standard building circuit breaker?
A: Yes. Despite its high output, the machine has a rated operational draw of 5.6A and requires an electrical circuit breaker protection of just 5A. It comes pre-wired with a standard 10 Amp single-phase Australian plug, allowing a quick setup without heavy 3-phase power infrastructure.
