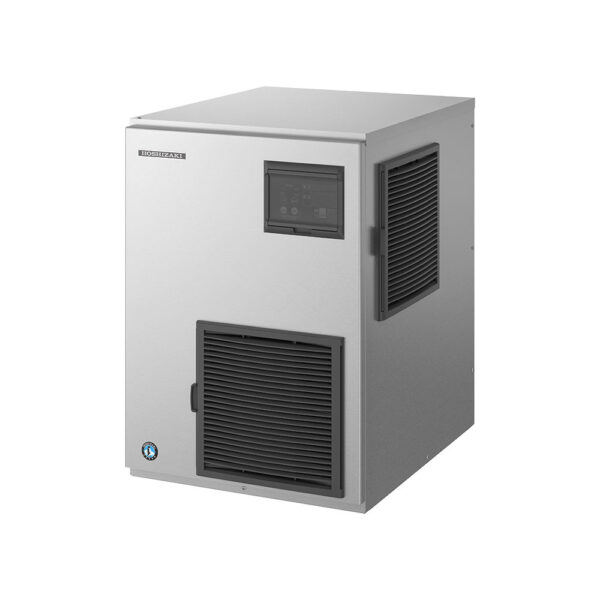

Hoshizaki FM-480AKE-HC-SB Flake Ice Maker Head Only 400Kg/Day

Hoshizaki FM-480AKE-HC-SB Flake Ice Maker

The Hoshizaki FM-480AKE-HC-SB Flake Ice Maker is a commercial modular ice machine engineered for ultra-high-volume Australian hospitality, industrial seafood retail, food production facilities, and medical applications. Producing Hoshizaki’s signature light, soft-textured flake ice, this heavy-duty head unit blends automated maintenance innovation with industry-leading thermal efficiency. Built specifically to handle intense ambient workloads, it is the premier choice for large-scale operations looking to scale their ice reserves while managing baseline utility costs.

Premium Flake Ice Production for Food storage and Food displays

The modern Australian commercial landscape demands uncompromised volume and flawless temperature control. The Hoshizaki FM-480AKE-HC-SB is an ultra-capacity modular solution crafted for large seafood markets, busy supermarket displays, commercial catering operations, and medical facilities across Australia. Standard ice cubes present sharp edges that can bruise delicate produce or leave large gaps that cause uneven cooling. Hoshizaki’s premium soft flake ice forms a gentle, highly packable bed that cools quickly and evenly. Its flat shape maximizes contact area with fresh items, preventing freezer burn while maintaining a consistent, hydrated temperature environment for high-volume seafood displays, catering platters, and fresh produce.

As a modular head unit, this machine is designed to sit cleanly on top of an independent storage bin, giving businesses the flexibility to select the perfect reserve capacity to match their specific peak trading demands.

Operational Advantages & Efficiency Benefits

Investing in the Hoshizaki FM modular generation means putting long-term efficiency and scalable performance at the centre of your operations.

• Optimised Environmental Sustainability: Utilising eco-friendly R290 natural refrigerant, this unit complies with stringent modern environmental codes. It dramatically minimizes greenhouse gas impact while driving down baseline utility bills.
• Intelligent Utility Management: Equipped with an energy-efficient variable-speed magnetic DC pump motor, the machine draws only the power and water required for each freeze cycle stage. A dedicated stand-by mode prevents resource waste during closed hours.
• Flawless Presentation with Automatic Rinsing: The system features an innovative, automated water circuit rinse cycle. This continuous cycle prevents mineral buildup, blocks calcification, and flushes the hydraulic lines to maintain exceptional sanitary conditions.
• Advanced Sealed Hygiene Protection: The combination of a fully closed water circuit and premium foamed insulation shields the ice-making process from ambient air contaminants, preserving ice purity throughout production.

Key Engineering Features

• Modular Stackable Layout: Flexible engineering allows the unit to adapt to growing operations, maximizing vertical space while delivering high ice output.
• Premium Multi-Material Build: Clad in premium stainless steel on the sides and rear, paired with an ABS-moulded front, top, and drain pan to ward off corrosion and impact wear.
• Automated Service Notifications: Built-in alerts signal proactive water circuit, and condenser cleaning needs to prevent major breakdowns before they occur.
• Tool-Free Component Access: The easily removable water tank and magnetic DC pump pull out quickly, simplifying routine inspections and technical servicing.
• Customisable Panel Adjustments: Features an adjustable control panel to modify ice characteristics and match specific beverage or display requirements.

Technical Specifications

• Nominal Daily Production: Rated up to 450kg per 24 hours at optimal 10°C Air / 10°C Water.
• Realistic Kitchen Scaling: Produces approx. 400kg per 24 hours at standard 21°C Air / 15°C Water; outputs approx. 340kg per 24 hours at peak 32°C Air / 21°C Water.
• Ice Format Size: Soft, high-hydration Flake Ice format.
• Compatible Storage Bins & Top Kits: Integrates with B-301SA (no top kit required), B-501SA (requires 8D kit), or B-801SA (requires 8D + 18D kits). Supports a double-stack configuration on the B-801SA using a 4DM kit.
• Electrical Draw: 1 Phase, 220–240V, 50Hz with a standard pre-fitted 10 Amp Australian Plug.
• Power Consumption: Ultra-efficient 1100W draw under typical operation.
• Exterior Shell Construction: Stainless steel (sides, rear) combined with durable ABS moulding (front, top, drain pan).
• Standard Accessories Included: Complete professional installation kit. (Scoop not included with this head unit).

Dimensions & Operational Requirements

• Product Width: 560 mm
• Product Depth: 700 mm
• Product Height: 780 mm
• Net Product Weight: 92 kg
• Packed Weight: 99 kg
• Ambient Operating Temperature Range: 5°C to 40°C
• Incoming Water Supply Temperature: 5°C to 35°C
• Water Supply Pressure Range: 0.05 to 0.8 MPa (0.5 – 8bar)
• Voltage Range: Rated Voltage ±6%

Warranty & Regulatory Compliance

The Hoshizaki FM-480AKE-HC-SB is fully GEMS Approved (GEMS Number: AIM0045) for energy efficiency and compliance across all Australian territories. It carries a premium manufacturer warranty framework:

• 3 Years parts and labour warranty covering the entire modular ice maker unit.
• 5 Years parts-only warranty covering the advanced commercial compressor and air-cooled condenser coil.

Why This Machine Excels in Busy Commercial Kitchens

Australian commercial facilities are notoriously harsh environments, subject to elevated temperatures, grease vapor, and tight floor plans. Sizing an ice machine based on a mild winter day is a recipe for summer shortfalls. Industry experts emphasize that the 32°C ambient benchmark is the metric that matters most when planning for Australian conditions. The Hoshizaki FM-480AKE-HC-SB delivers an impressive 340kg of soft flake ice daily even when internal temperatures spike to 32°C.

Its narrow 560mm width allows it to be installed easily over narrow storage bins, saving critical horizontal floor space. Additionally, the smart, automated wash-auto-restart technology ensures that if power or water is momentarily interrupted during service spikes, the machine recovers and resumes ice production automatically without staff intervention.

Proactive Cleaning & Maintenance Routine

1. Automated Maintenance Cycles: Leverage the built-in automated cleaning with wash auto-restart to routinely flush internal scale and keep the hydraulic system immaculate.
2. Accessible Condenser Care: Clean the air condenser coils at regular intervals when the dashboard flashes a notification to maintain optimal airflow and prevent utility bills from spiking.
3. ABS Moulding & Exterior Wipe: Clean down the ABS front panels and drain pan weekly with a mild, food-safe sanitizer to prevent sediment buildup.
4. Water Treatment Requirement: This unit requires a dedicated water filtration system (such as the compatible HLF10G Water Filter Kit & Gauge, sold separately). Proper filtration removes heavy chlorines and sediment, protecting the inner ice-making mechanism.

Frequently Asked Questions

Q1: What are the electrical requirements for this 400kg model? Does it need 15 Amps?
A: No, despite its high production capacity, the FM-480AKE-HC-SB runs on a standard 1 Phase, 220–240V supply and features a 10-Amp Australian plug. This makes it easy to deploy into existing commercial layouts without costly electrical modifications.

Q2: What is the benefit of the premium foamed insulation used in this model?
A: Hoshizaki integrates advanced foamed insulation around the water circuit. This significantly reduces ambient heat transfer, improving thermal efficiency and ensuring the machine works less to chill water, lowering overall utility costs.

Q3: How much power does this unit consume during normal operation?
A: The machine has a rated electric consumption of 1100W. Combined with the variable-speed magnetic DC pump motor, it optimizes power draw based on production stages to maintain high output with minimal energy waste.

Q4: Can I double-stack this machine if my venue’s ice demand grows?
A: Yes. This modular head unit is designed with a stackable layout. By utilizing the specific 4DM Top Kit, you can safely double-stack units onto a larger storage bin like the B-801SA to double your output without using more floor space.

Q5: What are the daily water consumption patterns for this 400kg machine?
A: Water usage scales based on ambient conditions. In standard environment metrics (21°C Air / 15°C Water), the machine uses approximately 0.400 cubic meters (400 litres) of water per 24 hours to generate corresponding amounts of premium flake ice.
