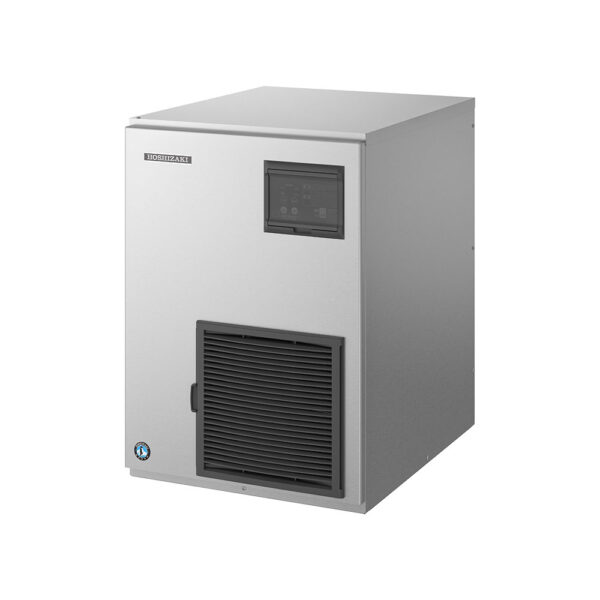

Hoshizaki FM-300AKE-HCN-SB Nugget Ice Maker Head Only 210Kg/Day

Hoshizaki FM-300AKE-HCN-SB Nugget Ice Maker

The Hoshizaki FM-300AKE-HCN-SB Nugget Ice Maker is a commercial modular ice machine engineered for high-volume Australian cocktail bars, quick-service venues, and fresh seafood merchandising. Manufacturing Hoshizaki’s premium dry, densely compacted nugget ice formats, this high-output head unit combines advanced mechanical reliability with industry-leading thermal efficiency. Built specifically to deliver consistent yields under punishing ambient workloads, it stands as the premier choice for rapidly growing operations looking to scale their ice production while capping underlying utility expenses.

Premium Modular Nugget Ice for Cocktail Crafting and Seafood Merchandising

The modern Australian hospitality and retail sectors demand rapid beverage chilling, flawless drink balance, and stunning visual presentation. The Hoshizaki FM-300AKE-HCN-SB is a high-capacity modular solution engineered for high-end cocktail lounges, specialty juice bars, busy pubs, and gourmet seafood retailers across Australia. Traditional block or hollow ice can melt unevenly, diluting top-shelf spirits and altering curated flavour profiles. Hoshizaki’s premium dry, hard nugget ice is compressed during production to ensure a slow, highly uniform melt rate. This unique structure delivers an ideal balance of rapid chilling and controlled dilution, making it the essential foundation for signature Mojitos, classic Tiki blends, and frappes.

Beyond mixology, this dense nugget format serves as an exceptional alternative to traditional flake ice for cold fresh food displays. The small, compressed nuggets easily Mold into shape around delicate produce, offering a striking, clear-ice effect that beautifully highlights premium oysters, prawns, and fresh catches on seafood beds. As a modular head unit, it installs cleanly on top of separate storage bins, allowing venues to customize their total ice reserve capacity to match their precise peak trading requirements.

Operational Advantages & Efficiency Benefits

Investing in the Hoshizaki FM modular range means anchoring your workflow with scalable performance, long-term durability, and smart resource management.

• Optimised Environmental Sustainability: Utilizing eco-friendly R290 natural refrigerant, this machine complies fully with modern green building and refrigeration codes, minimizing carbon footprints while significantly driving down baseline power consumption.
• Intelligent Utility Management: Fitted with an energy-efficient variable-speed magnetic DC pump motor, the unit actively adjusts water flow through every stage of the freeze cycle. A built-in stand-by function halts energy and water waste during closed hours.
• Flawless Hygiene via Automatic Rinsing: Engineered with Hoshizaki’s pioneering automated water circuit rinse sequence. This system flushes out residual minerals and sediment between production runs, defending internal lines from calcification.
• Sealed Structural Integrity: The combination of a completely closed water circuit and premium foamed insulation shields the freezing zone from ambient kitchen dust and grease vapours, ensuring uncompromised food safety.

Key Engineering Features

• Modular Stackable Architecture: Compact, space-saving engineering allows growing venues to stack units vertically, maximizing total ice output without surrendering valuable kitchen or back-bar floor space.
• Premium Multi-Material Build: Features robust stainless-steel side and rear panels paired with a durable ABS-moulded front, top, and drain pan to provide high impact resistance and long-term protection against corrosion.
• Automated Preventive Alerts: Built-in dashboard indicators flash proactive water circuit and condenser cleaning notifications, allowing staff to handle routine maintenance before operational faults develop.
• Tool-Free Component Upkeep: The internal water tank and magnetic DC pump assembly are designed to slide out effortlessly, streamlining technical servicing and reducing routine service call times.
• Food-Grade Internal Components: Core internal processing elements are fabricated from high-grade AISI 430 stainless steel to guarantee maximum sanitation and clean ice delivery.

Technical Specifications

• Nominal Daily Production: Rated up to 250kg per 24 hours at optimal 10°C Air / 10°C Water.
• Realistic Kitchen Scaling: Produces approx. 210kg per 24 hours at standard 21°C Air / 15°C Water; outputs approx. 175kg per 24 hours at peak 32°C Air / 21°C Water.
• Ice Format Size: Hard, tightly compressed Nugget Ice style.

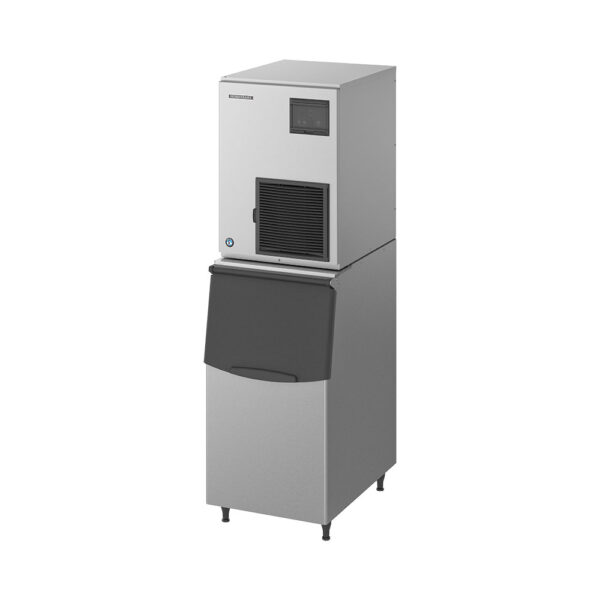

• Compatible Storage Bins & Top Kits: Integrates directly with B-301SA (no top kit required), B-501SA (requires 8D kit), or B-801SA (requires 8D + 18D kits). Supports a double-stack configuration on the B-801SA using a 4DM kit.
• Electrical Draw: 1 Phase, 220–240V, 50Hz configuration featuring a pre-fitted 10 Amp Australian Plug.
• Power Consumption: Energy-minimised 960W operational draw.
• Exterior Shell Construction: Stainless steel (sides, rear) combined with durable ABS moulding (front, top, drain pan).
• Standard Accessories Included: Complete professional installation kit, drainage lines, and an ergonomic ice scoop.

Dimensions & Operational Requirements

• Product Width: 560 mm
• Product Depth: 700 mm
• Product Height: 780 mm
• Net Product Weight: 81 kg
• Packed Weight: 88 kg
• Ambient Operating Temperature Range: 5°C to 40°C
• Incoming Water Supply Temperature: 5°C to 35°C
• Water Supply Pressure Range: 0.05 to 0.8 MPa (0.5 – 8 bar)
• Voltage Range: Rated Voltage ±6%

Warranty & Regulatory Compliance

The Hoshizaki FM-300AKE-HCN-SB is fully GEMS Approved (GEMS Registration Number: AIM0036) for verified energy efficiency parameters across all Australian states and territories. It is backed by a premium factory warranty program:

• 3 Years parts and labour warranty spanning the complete modular nugget ice maker head unit.
• 5 Years parts-only warranty protecting the advanced commercial compressor and air-cooled condenser coil assembly.

Why This Machine Excels in Busy Commercial Kitchens

Australian commercial spaces operate under extreme climate duress, characterized by soaring kitchen radiant heat, airborne grease, and highly restricted footprints. Sizing a high-capacity ice unit based on mild winter statistics inevitably results in severe mid-summer shortfalls. Industry experts recognize that the 32°C ambient baseline is the only reliable metric that matters for venue planning. The Hoshizaki FM-300AKE-HCN-SB excels here, pumping out an impressive 175kg of solid mixology nuggets daily even when ambient kitchen temperatures surge to 32°C.

Its streamlined 560mm width allows it to be installed easily over narrow storage bins, saving critical horizontal floor space in dense back-of-house layouts. Additionally, the smart, automated wash-auto-restart technology ensures that if power or water pressure experiences a minor fluctuation during a chaotic service window, the machine safely clears the lines and resumes production automatically without requiring manual staff intervention.

Proactive Cleaning & Maintenance Routine

To keep your nugget ice tasting crisp and protect your active manufacturer warranty, stick to this simple upkeep sequence:

1. Automated Maintenance Cycles: Leverage the built-in automated cleaning with wash auto-restart to routinely flush internal scale and keep the internal hydraulic plumbing immaculate.
2. Accessible Condenser Care: Clean the air condenser coils at regular intervals when the dashboard flashes a notification to maintain optimal airflow and prevent utility bills from spiking.
3. ABS Moulding & Exterior Wipe: Clean down the ABS front panels and drain pan weekly with a mild, food-safe sanitizer to prevent sediment buildup.
4. Water Treatment Requirement: This unit requires a dedicated water filtration system (such as the compatible HLF10G Water Filter Kit & Gauge, sold separately). Proper filtration removes heavy chlorines and sediment, protecting the inner ice-making mechanism.

Frequently Asked Questions

Q1: How does a variable-speed magnetic DC pump motor benefit my venue compared to standard motors?
A: Standard pump motors run at a fixed, maximum speed regardless of internal conditions, which wastes energy and can cause erratic freezing. Hoshizaki’s magnetic DC pump motor automatically micro-adjusts water flow based on the exact stage of production, lowering overall energy bills and ensuring every nugget is compressed uniformly without soft or slushy pockets.

Q2: What are the exact structural advantages of the AISI 430 stainless steel components?
A: AISI 430 is a premium, high-density food-grade stainless steel used for the core internal ice-shaping mechanisms. It offers high thermal conductivity for efficient freezing, features an ultra-smooth finish that actively resists mineral scale bonding, and is completely safe for direct contact with consumable ice.

Q3: Can this modular unit be mounted directly onto a benchtop without a storage bin?
A: No. This is a modular head unit, meaning it contains only the ice-making mechanism and has no built-in storage reservoir. It must be securely installed on top of a compatible Hoshizaki storage bin (such as the B-301SA or B-501SA) so the harvested nuggets can drop safely into a insulated bunker below.

Q4: What purpose does the premium foamed insulation serve inside the head unit?
A: The advanced foamed insulation locks in cold temperatures around the internal water tank and freezing cylinder. This blocks external kitchen heat from warming the incoming water line, allowing the machine to freeze ice faster with less compressor strain, driving down overall utility consumption.

Q5: Is it possible to adjust the size or density of the nuggets via the control panel?
A: Yes. The intuitive digital control panel includes adjustable settings that allow a technician or operator to modify specific freeze parameters. This lets you subtly tune the compression dynamics to alter nugget characteristics, ensuring your ice perfectly matches your beverage or seafood display requirements.
