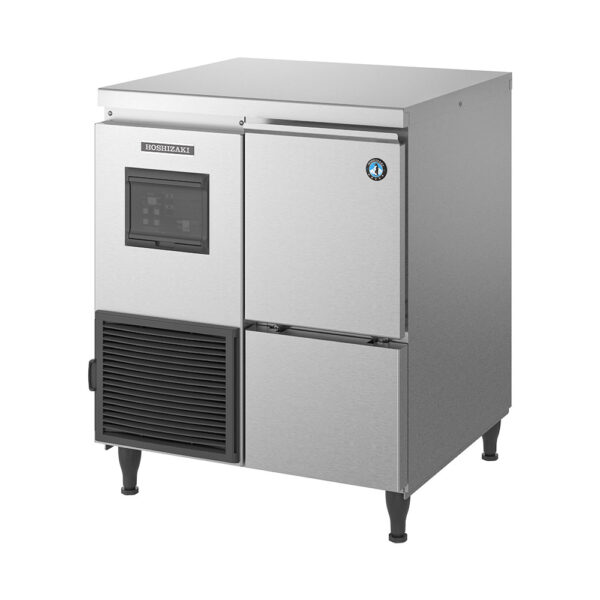

Hoshizaki FM-120KE-HCN Nugget Ice Maker 110Kg/Day 32kg Bin

Hoshizaki FM-120KE-HCN Nugget Ice Maker

The Hoshizaki FM-120KE-HCN Nugget Ice Maker is a commercial self-contained ice machine engineered for high-end Australian mixology, quick-service venues, and health facilities. Manufacturing Hoshizaki’s signature dry, compact nugget ice compressed formats, this high-performance under-bench unit blends micro-filtration readiness with advanced mechanical efficiency. Crafted specifically to combat demanding ambient operating conditions, it stands as the premier choice for busy establishments seeking to upgrade beverage presentation while capping underlying utility expenses.

Premium Compressed Nugget Ice Production for Australian Mixology & Cafes

The modern Australian beverage landscape demands visual panache, rapid drink cooling, and structural consistency. The Hoshizaki FM-120KE-HCN is a premium solution engineered for high-volume cocktail lounges, specialty juice spots, busy local cafes, and healthcare wards across Australia. Standard hollow or cube ice can fracture unpredictably or cause massive spirit dilution spikes. Hoshizaki’s premium dry, hard nugget ice is tightly compacted to offer a slower, highly uniform melt rate. This specific density delivers rapid beverage chilling with perfect flavour balance—making it the essential ingredient for signature Mojitos, classic Tiki cocktails, blended iced coffees, and health-centric smoothie bases.

Designed as a compact self-contained appliance with an integrated 32kg storage bunker, it slips effortlessly beneath standard Australian bars or commercial counter structures. This layout guarantees front-of-house hospitality teams have immediate, direct access to premium mixology ice during peak weekend rushes.

Operational Advantages & Efficiency Benefits

Integrating the Hoshizaki FM Nugget range means anchoring your kitchen workflow with long-term operational resilience and resource savings.

• Optimised Environmental Sustainability: Utilizing eco-friendly R290 hydrocarbon natural refrigerant, this unit complies fully with modern Australian climate policies, drastically reducing carbon output while lowering baseline power consumption.
• Intelligent Utility Management: The interior design incorporates an advanced automated water circuit rinse sequence. These routine flush pushes out residual minerals, averting calcification and defending internal hydraulic plumbing from breakdown.
• Flawless Presentation with Smart Monitoring: The system tracks usage via an intuitive, integrated display dashboard that features a worktime-based component tracker. This lets management plan preventative service windows rather than reacting to unexpected trade interruptions.
• Advanced Sealed Hygiene Protection: Constructed with a fully closed water circuit, the freezing process is isolated from back-of-house airborne dust, lint, and kitchen contaminants. Every compressed nugget is formed under sanitary conditions.

Key Engineering Features

• Bearing less Compression Auger: Employs specialized carbon graphite bushings instead of traditional oil-lubricated steel ball bearings, enabling entirely grease-free ice creation.
• Minimized Wear & Tear: Eliminating traditional complex bearing points directly diminishes friction, ensuring whisper-quiet bar operation and reduced parts replacement over time.
• Premium Marine-Grade Build: Outer cladding is formed from industrial AISI 441 stainless steel with a protective galvanized rear casing to resist rust in humid, high-salinity Australian back-of-house zones.
• Tool-Free Component Access: Internal water lines, cleanable parts, and the core evaporator components are mapped out for fast mechanical inspection and technical upkeep.
• Space-Saving Footprint: Highly compact frame architecture allows painless implementation where precious commercial floor space commands a premium.

Technical Specifications

• Nominal Daily Production: Rated up to 110kg per 24 hours at optimal 10°C Air / 10°C Water.
• Realistic Kitchen Scaling: Produces approx. 96kg per 24 hours at standard 21°C Air / 15°C Water; outputs approx. 75kg per 24 hours at peak 32°C Air / 21°C Water.
• Ice Format Size: Hard, tightly compressed Nugget Ice style.
• Integral Storage Bin Capacity: Maximum level storage capacity of approx. 32kg (with an automated bin control safety trigger point of approx. 27kg).
• Electrical Draw: 1 Phase, 220–240V, 50Hz configuration featuring a standard pre-fitted 10 Amp Australian Plug.
• Power Consumption: Energy-minimised 355W operational load.
• Exterior Shell Construction: Commercial-grade AISI 441 Stainless Steel face and sides with galvanized back panels.
• Standard Accessories Included: Complete professional installation kit, drainage line lines, and an ergonomic ice scoop.

Dimensions & Operational Requirements

• Product Width: 640 mm
• Product Depth: 600 mm
• Product Height: 800 mm (Adjustable base legs support a variable height range of 798mm to 833mm)
• Net Product Weight: 66 kg
• Packaged Weight: 76 kg
• Ambient Operating Temperature Range: 5°C to 40°C
• Incoming Water Supply Temperature: 5°C to 35°C
• Water Supply Pressure Range: 0.05 to 0.8 MPa
• Voltage Range: Rated Voltage ±6%

Warranty & Regulatory Compliance

The Hoshizaki FM-120KE-HCN is fully GEMS Approved (GEMS Registration Number: AIM0025) for verified power efficiency and compliance parameters across all Australian states. It is backed by a robust factory warranty program:

• 3 Years parts and labour warranty spanning the complete self-contained nugget maker system.
• 5 Years parts-only warranty protecting the high-grade commercial compressor and air-cooled condenser coil assembly.

Why This Machine Excels in Busy Commercial Kitchens

Australian bars and restaurant kitchens operate under extreme, high-stress conditions characterized by soaring kitchen heat, ambient grease, and restrictive spatial footprints. Selecting a machine solely based on mild climate testing triggers sudden summer volume drops. Commercial refrigeration metrics state that the 32°C ambient baseline is the only benchmark that matters for venue planning. The Hoshizaki FM-120KE-HCN consistently pumps out 75kg of solid mixology nuggets daily even when ambient bar temperatures surge to 32°C.

Its physical structure utilizes front-facing heat ventilation pathways, letting it settle into tight under-bench niches alongside cocktails rails or service stations without choking off vital air induction. Furthermore, the inclusion of water-lubricated bearings acts as a safeguard against mineral calcification and bacterial buildup during low-use winter periods. This engineering focus guarantees the equipment outlasts cheap, standard ice units by a wide margin.

Proactive Cleaning & Maintenance Routine

To keep your nugget ice tasting crisp and protect your active manufacturer warranty, stick to this simple upkeep sequence:

1. Automated Water Purging: Trust the automated rinse cycle built into the system. It clears lingering sediment from internal water lines, guaranteeing every nugget remains completely hygienic.
2. Accessible Condenser Filters: Slide out the front-mounted air ventilation filter at set intervals to wash away dust and oil particles. Clean airflow blocks unnecessary motor strain and prevents your energy bills from climbing.
3. Storage Bunker Sanitation: Wipe down the interior surfaces of the 32kg storage bunker weekly using an approved, food-safe sanitizer to disrupt bacterial bio-films.
4. Water Treatment Requirement: This appliance requires an inline water filtration system (such as the compatible HLF10G Water Filter Kit & Gauge, sold separately). Quality water filtration eliminates chlorine elements and heavy sediment, shielding the internal extrusion head from scoring.

Frequently Asked Questions

Q1: What is the main difference between flake ice and Hoshizaki nugget ice?
A: Flake ice is light, flat, and highly hydrated, making it perfect for moulding around seafood or produce displays. Nugget ice takes those same flakes and compresses them through a high-pressure die. This produces compact, dense, cylindrical pieces of chewable ice that cool drinks rapidly without melting instantly.

Q2: Does the automated worktime component tracking display mean I don’t need regular servicing?
A: No, the worktime tracker is an analytics tool designed to assist your service technician. By recording the precise hours the auger and motor have spun, it visually indicates when vital internal wear components are due for routine replacement. This lets you avoid surprise failures during peak holiday trading.

Q3: Can nugget ice be utilized in a standard post-mix beverage dispenser?
A: Because nugget ice is compressed, dry, and structurally uniform, it can be utilized in specific ice-dispensing bins or beverage towers without clumping together or freezing solid, providing a smooth delivery compared to wet flake ice formats.

Q4: What is the benefit of having grease-free carbon graphite bushings inside the mechanism?
A: Traditional ice machines use mechanical ball bearings that require grease lubricants near the water circuit. Hoshizaki’s grease-free bushings eliminate the risk of oil entering your ice. They use the water circuit to lubricate the moving parts, completely shutting out bacterial colonization zones.

Q5: What happens if the incoming water supply pressure drops below the stated minimum?
A: This unit requires a water pressure baseline between 0.05 and 0.8 MPa. If your building’s water pressure drops below this threshold, the machine’s internal sensors will stall the freezing cycle to prevent the auger from turning dry, guarding the assembly from friction damage.
