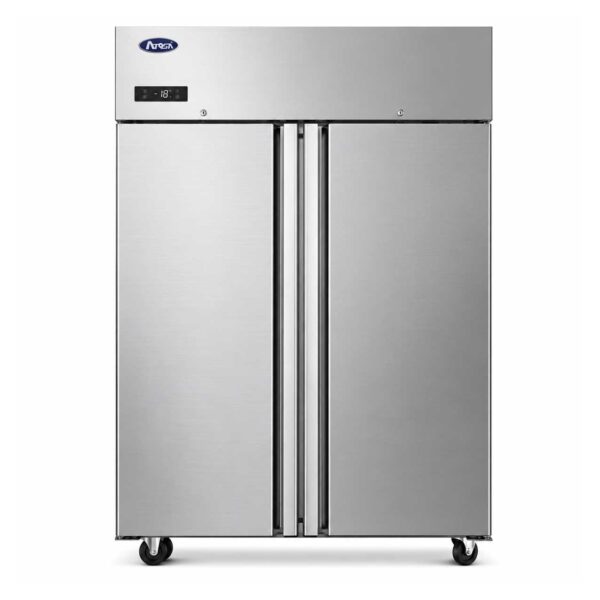

Atosa JBF80FSGR slimline double door upright freezer 860 Ltr

Atosa JBF80FSGR Slimline Double Door Freezer

The Atosa JBF80FSGR Slimline Upright Double Door Freezer is a premium vertical commercial deep-freeze unit engineered with an advanced fan-forced cooling system and a heavy-duty, energy-efficient compressor. Explicitly designed to excel in the high-volume environment of the Australian hospitality industry, this 860-to-1090-litre capacity machine bridges the gap between reliable sub-zero climate safety and space-saving back-of-house organization.

Equipped with a compact 1314mm wide footprint, the JBF80FSGR maximizes restricted floor space while offering immense deep-freeze storage capabilities. Moving away from traditional extra-wide dual-door freezers to Atosa’s slimline, ventilated design optimizes daily kitchen layouts, maintains rapid temperature recovery after door openings, and completely prevents stock loss over long, demanding service shifts.

True 10-Amp Plug-and-Play Versatility for High-Volume Venues

The absolute biggest operational advantage of the Atosa JBF80FSGR is its highly efficient electrical and structural layout. While industrial-grade commercial freezing infrastructure often requires specialized electrical data points or 15-Amp hardwired upgrades, this heavy-duty dual-door storage cabinet runs seamlessly on 220–240V power with a standard 10A plug.

Drawing an optimized 800 Watts of power at 3.8 Amps, this electrical layout offers immense flexibility for Australian business owners:

• Boutique Cafés & Ice Cream Hubs: Position the unit in tight kitchen prep areas to hold bulk volumes of alternative milks, smoothie packs, and gelato bases directly beside active workspaces.
• Mobile Food Trucks & Catering Trailers: Maximize wider mobile floor plans with an extra-deep vertical cabinet that expands storage volumes without overloading temporary generator limits.
• School Canteens & High-Volume Tuckshops: Effortlessly handle steady, high-turnover frozen inventory and prepped school lunches without dedicating extensive floor space.
• Restaurants, Bars & Large Catering Venues: Keep massive batches of frozen proteins, raw seafood, and prepped ingredients perfectly preserved right along active cooking corridors.

Why the Atosa JBF80FSGR is Essential for Commercial Kitchens

Expert Verdict: The JBF80FSGR is a masterclass in space-efficient deep freezing. By integrating a heavy-duty tropical-rated system with direct Gastronome tray compatibility, Atosa Australia has solved the two biggest issues facing double-door upright freezers: dangerous temperature drops in hot ambient environments and messy, inefficient stock rotation.

Heavy-Duty Ambient Cooling for Maximum Sub-Zero Stability
Frozen inventory stored in low-performance freezers compromises stock safety rapidly during hot Australian summers. The JBF80FSGR is rated for Climate Class 5, performing reliably at extreme ambient temperatures up to 40°C to 43°C. It’s down-duct ventilated cooling system ensures uniform airflow across all shelf layers, maintaining a strict -17°C to -22°C deep-freeze storage zone even under intense kitchen line heat.

Stamped Gastronome Side Panels for Flawless Prep Integration
Fumbling with adjustable shelf clips or loose rack tracking slows down busy shifts and ruins kitchen workflows. This model features a specialized stamped side panel interior design that fits full-size 2/1 GN and 1/1 GN pans directly into the walls. Staff can slide heavy freezing trays straight from the prep table into the freezer without requiring secondary containers.

Self-Closing and Stay-Open Dual Solid Door Hinge System
Every busy commercial service line requires a flexible user-handling approach. The solid stainless-steel doors feature a dual-action tension system: they automatically self-close to preserve sub-zero temperatures during rushed movements and stay open at 90 degrees to allow stable, dual-handed tray loading during bulk stock deliveries.

Key Features & Operational Advantages

• Pre-Installed Castors & Adjustments: Mounted on heavy-duty pre-installed castors for smooth mobility during floor cleaning, complete with front brake levellers for absolute stability.
• Dual Standard Safety Door Locks: Fitted with robust, pre-installed barrel key locks at the base of the doors to protect premium stock and secure inventory overnight.
• Ultra-Durable Stainless-Steel Construction: Built with high-grade stainless steel on both the exterior and interior walls to resist rusting, denting, and corrosion.
• Digital Dixell Temperature Controller: Features an external digital control panel that provides real-time readout data and allows simple, accurate parameter adjustments.
• Magnetic Tool-Free Door Gaskets: Equipped with premium magnetic rubber gasket arrays that form a tight, reliable thermal seal and pop out quickly for sanitation checks.

Technical Specifications

• Model Name: Atosa JBF80FSGR (Slimline Upright Double Solid Door Freezer)
• Type: Vertical double-door ventilated storage commercial freezer
• Storage Capacity: 860L net / 1090L gross capacity
• Shelf Layout: Includes 8x pre-installed wire shelves with moulded side panel tracking
• External Dimensions: 1314mm W x 800mm D x 2065mm H
• Electrical Requirements: 220–240V / Single Phase / 50Hz
• Power Consumption: 800 Watts
• Current Draw: 3.8 Amps
• Plug Type: Fitted with an attached standard Australian 3-pin 10A plug
• Net Operational Weight: 155 kg
• Manufacturing Origin: Globally distributed via Simco Group / Atosa Australia

Cleaning & Maintenance Guide

Maintaining strict local council food health and sanitation compliance takes only minutes due to the smart interior elements of the JBF80FSGR:

1. Clear Out the Shelves: Slide out the 8 pre-installed wire shelves without tools for quick, deep washing in your commercial sink.
2. Wipe Down the Seamless Interior: Use a soft microfiber cloth and a mild food-safe detergent to wipe down the internal stainless-steel walls, avoiding harsh abrasives.
3. Brush the Rear Condenser Coil: Clean the condenser cooling fins every 4 months with a soft brush or vacuum to remove dust build-up and guarantee peak efficiency.

Warranty, Compliance & Safety

• Commercial Warranty: Backed by a premier 2 Year Parts & Labour Warranty, plus an additional 2 Year Parts Warranty upon completing online registration via the Simco Support Portal.
• Electrical Status Monitoring: Fully certified under Australian Electrical Safety Standards, carrying the official RCM-compliant mark.
• Food Safety Alignment: Features an easily sanitized HACCP-ready interior design with rounded inner corners to avoid grease traps and bacteria tracking.

Frequently Asked Questions

Q: What is the benefit of buying the JBF80FSGR slimline model over a standard commercial upright freezer?
A: Standard double-door commercial freezers often require widths exceeding 1400mm or extended depth profiles that block narrow kitchen pathways. The JBF80FSGR uses a highly compressed 1314mm wide slimline layout while staying extra deep, giving you the ability to fit dual columns of full-size Gastronome prep trays without sacrificing narrow floor pathways.

Q: Does this commercial freezer feature an automatic defrost cycle?
A: Yes. The advanced digital controller regulates automated electric defrost cycles. This melts away internal frost build-up on the evaporator coils automatically, ensuring the freezer operates efficiently without requiring manual interventions, shifting stock, or kitchen downtime.

Q: Can I change the hinging side of the doors on-site if my kitchen layout shifts?
A: No, the Atosa JBF80FSGR features a fixed dual-door setup with a left-hinged left door and a right-hinged right door opening from the centre out. This configuration is fixed from the factory to maximize structural integrity and sealing performance in hot commercial kitchens.

Q: Will standard-sized baking sheets or catering trays fit across these dual bays?
A: Yes, the internal stamped tracking is meticulously measured to accept 2/1 GN and 1/1 GN pans across both door sections seamlessly. Standard residential trays or off-spec baking pans will require placement on top of the supplied wire shelves.

Q: Does this dual-door model require a dedicated 15-Amp or hardwired electrical line?
A: No, despite its massive 1090L capacity, it operates cleanly on a standard 10-Amp 3-pin Australian plug. It can plug into any standard commercial kitchen wall point without the need for an electrician to wire a specialized circuit line.
