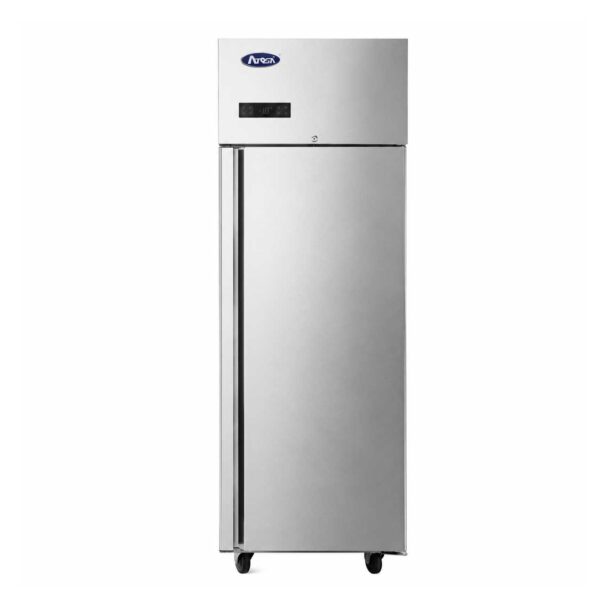

Atosa JBF40FSGR slimline single door upright freezer 430 Ltr

Atosa JBF40FSGR Slimline Freezer with High-Efficiency Cold Storage Success

The Atosa JBF40FSGR Slimline Upright Single Door Freezer is a premium vertical commercial deep-freeze unit engineered with an advanced fan-forced cooling system and a heavy-duty, energy-efficient compressor. Explicitly designed to excel in the high-volume environment of the Australian hospitality industry, this 430-to-488-litre capacity machine bridges the gap between reliable sub-zero climate safety and space-saving back-of-house organization.

Equipped with a compact 654mm wide footprint, the JBF40FSGR maximizes restricted floor space while offering immense deep-freeze storage capabilities. Moving away from traditional wide-profile freezers to Atosa’s slimline, ventilated design optimizes daily kitchen layouts, maintains rapid temperature recovery after door openings, and completely prevents stock loss over long, demanding service shifts.

True 10-Amp Plug-and-Play Versatility for High-Volume Venues

The absolute biggest operational advantage of the Atosa JBF40FSGR is its highly efficient electrical and structural layout. While industrial-grade commercial freezing infrastructure often requires specialized electrical data points or 15-Amp hardwired upgrades, this heavy-duty storage cabinet runs seamlessly on 220–240V power with a standard 10A plug.

Drawing an optimized 540 Watts of power, this electrical layout offers immense flexibility for Australian business owners:

• Boutique Cafés & Coffee Stations: Position the unit directly in tight prep corners to store frozen baked goods, smoothie packs, and ice creams right beside your active workspace.
• Mobile Food Trucks & Pop-Up Trailers: Maximize highly restricted mobile floor plans with a narrow vertical cabinet that will not overload temporary generator limits.
• School Canteens & Tuckshops: Effortlessly handle steady, high-turnover frozen inventory without dedicating extensive floor space or blowing local circuit limits.
• Restaurants, Bars & Catering Venues: Keep bulk frozen proteins, raw seafood, and prepped ingredients perfectly preserved right down the line for line cooks.

Why the Atosa JBF40FSGR is Essential for Commercial Kitchens

Expert Verdict: The JBF40FSGR is a masterclass in space-efficient deep freezing. By integrating a heavy-duty tropical-rated system with direct Gastronome tray compatibility, Atosa Australia has solved the two biggest issues facing compact upright freezers: dangerous temperature drops in hot ambient environments and messy, inefficient stock rotation.

Heavy-Duty Ambient Cooling for Maximum Sub-Zero Stability
Frozen inventory stored in low-performance freezers compromises stock safety rapidly during hot Australian summers. The JBF40FSGR performs reliably at high ambient temperatures up to 40°C to 43°C. Its ventilated fan-forced cooling system ensures uniform airflow across all shelf layers, maintaining a strict -17°C to -22°C deep-freeze storage zone even under extreme kitchen heat.

Stamped Gastronome Side Panels for Flawless Prep Integration
Fumbling with adjustable shelf clips or loose rack tracking slows down busy shifts and ruins kitchen workflows. This model features a specialized stamped side panel interior design that fits full-size 2/1 GN and 1/1 GN pans directly into the walls. Staff can slide heavy freezing trays straight from the prep table into the freezer without requiring secondary containers.

Self-Closing and Stay-Open Solid Door Hinge System
Every busy commercial service line requires a flexible user-handling approach. The solid stainless-steel door features a dual-action tension system: it automatically self-closes to preserve sub-zero temperatures during rushed movements and stays open at 90 degrees to allow stable, dual-handed tray loading during bulk stock deliveries.

Key Features & Operational Advantages

• Pre-Installed Castors & Adjustments: Mounted on heavy-duty pre-installed castors for smooth mobility during floor cleaning, complete with front brake levellers for absolute stability.
• Standard Safety Door Lock: Fitted with a robust, pre-installed barrel key lock at the base of the door to protect premium stock and secure inventory overnight.
• Ultra-Durable Stainless-Steel Construction: Built with high-grade stainless steel on both the exterior and interior walls to resist rusting, denting, and corrosion.
• Digital Dixell Temperature Controller: Features an external digital control panel that provides real-time readout data and allows simple, accurate parameter adjustments.
• Magnetic Tool-Free Door Gaskets: Equipped with a premium magnetic rubber gasket array that forms a tight, reliable thermal seal and pops out quickly for sanitation checks.

Technical Specifications

• Model Name: Atosa JBF40FSGR (Slimline Upright Single Solid Door Freezer)
• Type: Vertical single-door ventilated storage commercial freezer
• Storage Capacity: 430L net / 488L gross capacity
• Shelf Layout: Includes 4x pre-installed wire shelves with moulded side panel tracking
• External Dimensions: 654mm W x 800mm D x 2065mm H
• Electrical Requirements: 220–240V / Single Phase / 50Hz
• Power Consumption: 540 Watts
• Refrigerant Gas: Eco-friendly R290 hydrocarbon
• Plug Type: Fitted with an attached standard Australian 3-pin 10A plug
• Net Operational Weight: 100 kg
• Manufacturing Origin: Globally distributed via Simco Group / Atosa Australia

Cleaning & Maintenance Guide

Maintaining strict local council food health and sanitation compliance takes only minutes due to the smart interior elements of the JBF40FSGR:

1. Clear Out the Shelves: Slide out the pre-installed wire shelving without tools for quick, deep washing in your commercial sink.
2. Wipe Down the Seamless Interior: Use a soft microfiber cloth and a mild food-safe detergent to wipe down the internal stainless-steel walls, avoiding harsh abrasives.
3. Brush the Rear Condenser Coil: Clean the condenser cooling fins every 4 months with a soft brush or vacuum to remove dust build-up and guarantee peak efficiency.

Warranty, Compliance & Safety

• Commercial Warranty: Backed by a premier 2 Year Parts & Labour Warranty, plus an additional 2 Year Parts Warranty upon completing online registration via the Simco Support Portal.
• Electrical Status Monitoring: Fully certified under Australian Electrical Safety Standards, carrying the official RCM-compliant mark.
• Food Safety Alignment: Features an easily sanitized HACCP-ready interior design with rounded inner corners to avoid grease traps and bacteria tracking.

Frequently Asked Questions

Q: What is the benefit of buying the JBF40FSGR slimline model over a standard commercial upright freezer?
A: Standard upright commercial freezers often require widths exceeding 700mm to 750mm. The JBF40FSGR uses a highly compressed 654mm wide slimline layout while staying extra deep, giving you the ability to fit full-size Gastronome prep trays without sacrificing narrow floor pathways.

Q: Does this commercial freezer feature an automatic defrost cycle?
A: Yes. The advanced digital controller regulates automated electric defrost cycles. This prevents internal frost build-up on the evaporator coils, ensuring the freezer operates efficiently without requiring manual interventions or downtime.

Q: Can I change the hinging side of the door on-site if my kitchen layout shifts?
A: No, the Atosa JBF40FSGR comes from the factory with a fixed right-hand hinge layout. If your venue layout specifically demands a left-hinged setup, please consult our sales team prior to dispatching to verify alternative options.

Q: Will standard-sized baking sheets or catering trays fit on these shelves?
A: Yes, the internal stamped tracking is meticulously measured to accept 2/1 GN and 1/1 GN pans seamlessly. Standard residential trays or off-spec baking pans will require placement on top of the supplied wire shelves.

Q: How does this model compare to domestic-style upright storage freezers?
A: Domestic freezers lack the powerful compressors needed for frequent door-cycling and fail rapidly when kitchen temperatures exceed 30°C. The JBF40FSGR features industrial commercial parts rated for hot commercial lines.
